Full-Spectrum Multi-Parameter In-Situ Online Monitor Equipment Data
Product Model: SECCO-I-1901
Overview
| Video Off-site Inspection | Can provide | Installed Power | 3 W |
| Voltage | 12V/24V DC | Warranty Period | 1 year |
| Inspection Report | Can provide | Weight | 7 KG |
| Core Components | Xenon lamp, spectrometer, conductivity electrode | Main Material | 316 stainless steel, IP68 rating |
| Country of Origin | Anhui, China | Function | Water quality monitoring device |
| Product Name | Full-spectrum multi-parameter in-situ online monitor | Type | On or under the ground |
| Product Color | Customizable | Control | Electrical automatic control |
| Operation | Automatically execute | Minimum Order Quantity | 1 unit |
| Brand | SECCO | Core Component Warranty | 1 year |
| Provide After-sales Service | Drawings, videos, installation and operation and maintenance manuals, on-site services | ||
Product Specifications
| Content | Parameter |
| Equipment Size (mm) | 370 (H) * φ135 |
| Weight of Equipment (kg) | 7 |
| Installed Power (W) | 3 |
| Power Supply | DC 12V |
| Ambient Temperature (℃) | 0-60 |
| pH Scope | 0-14 |
| Communication Mode | 4G, GPS, BT |
| Waterproof Rating | IP68 |

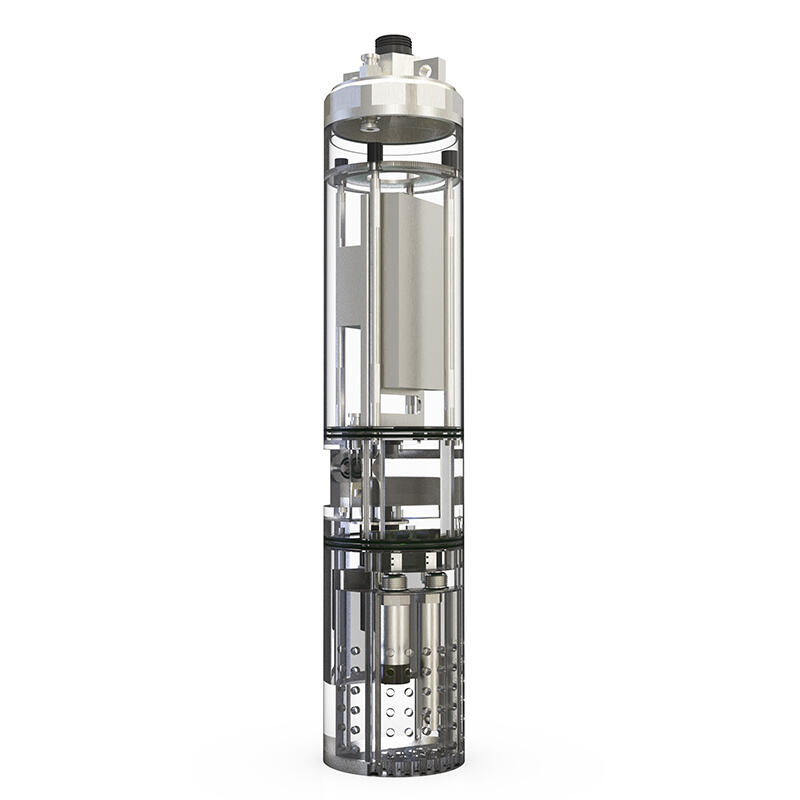

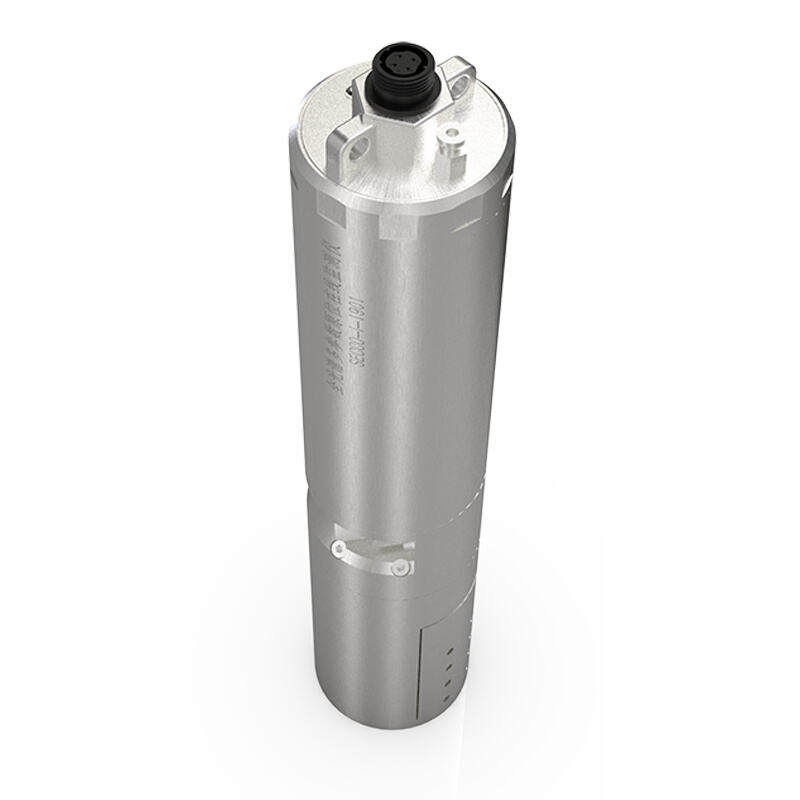

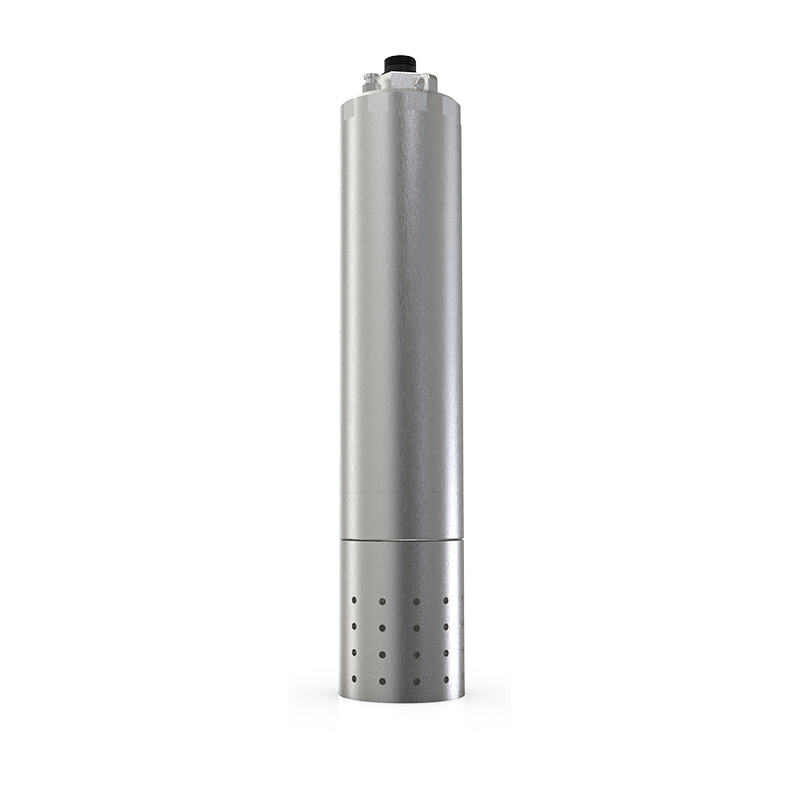

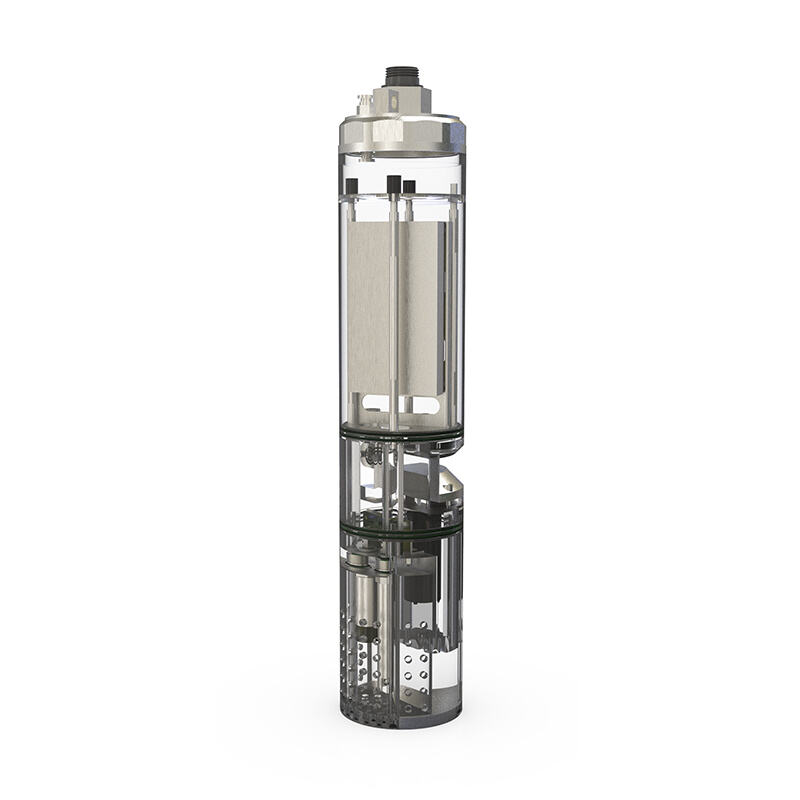

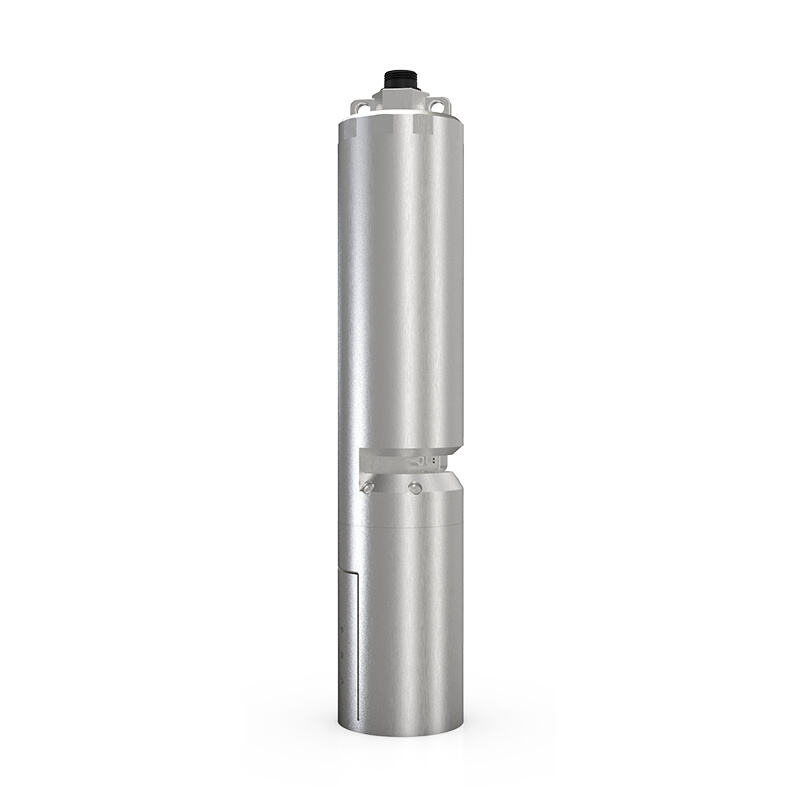

Equipment Appearance Diagram
The SECCO-I-1901 full-spectrum multi-parameter in-situ online monitor is a miniaturized product in the SECCO full-spectrum series, suitable for use in various scenarios with high compatibility. It features a stainless steel housing and an air-driven, automatically self-cleaning sapphire glass lens. The monitoring frequency is adjustable, and the device automatically enters sleep mode when not in use. It can record specific water pattern spectrum and upload them to the cloud. Combined with the SECCO cloud platform, it can query existing databases to estimate emission sources, providing traceability for water quality pollution. Monitoring parameters include: chemical oxygen demand (COD), ammonia nitrogen (NH3-N), total nitrogen (TN), total phosphorus (TP), pH, temperature, and conductivity.
Product Composition
The whole system is mainly composed of xenon lamp, spectrometer, conductivity electrode.
Technical Principle
Full-band scanning of ultraviolet-visible light + Neural network algorithm analysis.
Production Cycle
1 unit: 20 days
2-10 units: 45 days
11 units or more: To be determined
Support For Customization Options
| Option | Minimum Order | Customization Costs |
| Custom Nameplates | 1 | - |
| Custom Made Logo | 1 | - |
| Test Parameters | 1 | - |
Packaging Size
348×128×473(L×B×H)(mm)
Application Scenarios
-

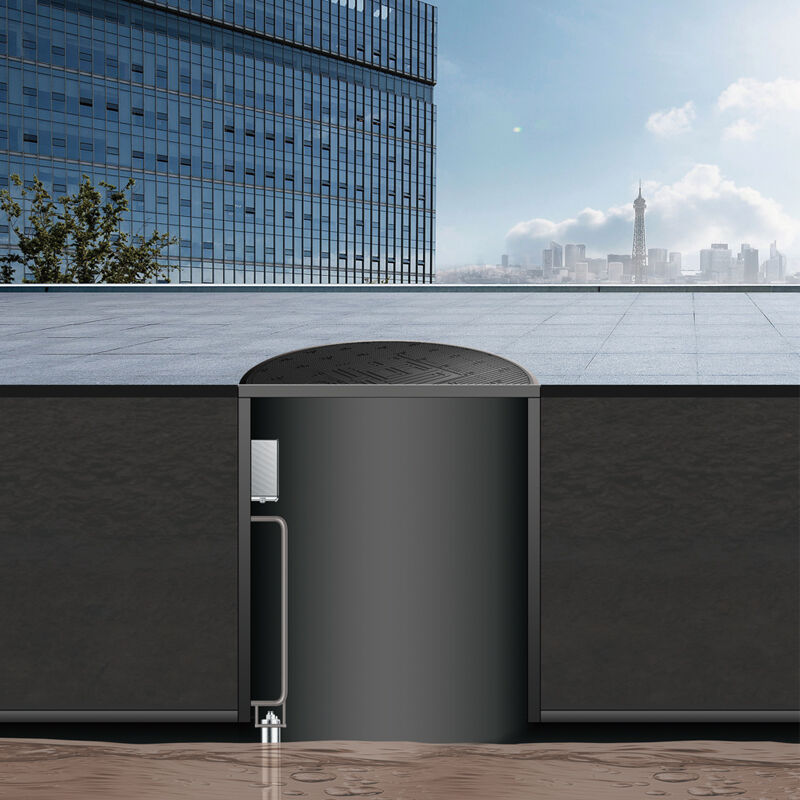

Underground monitoring of drainage pipe networks
-

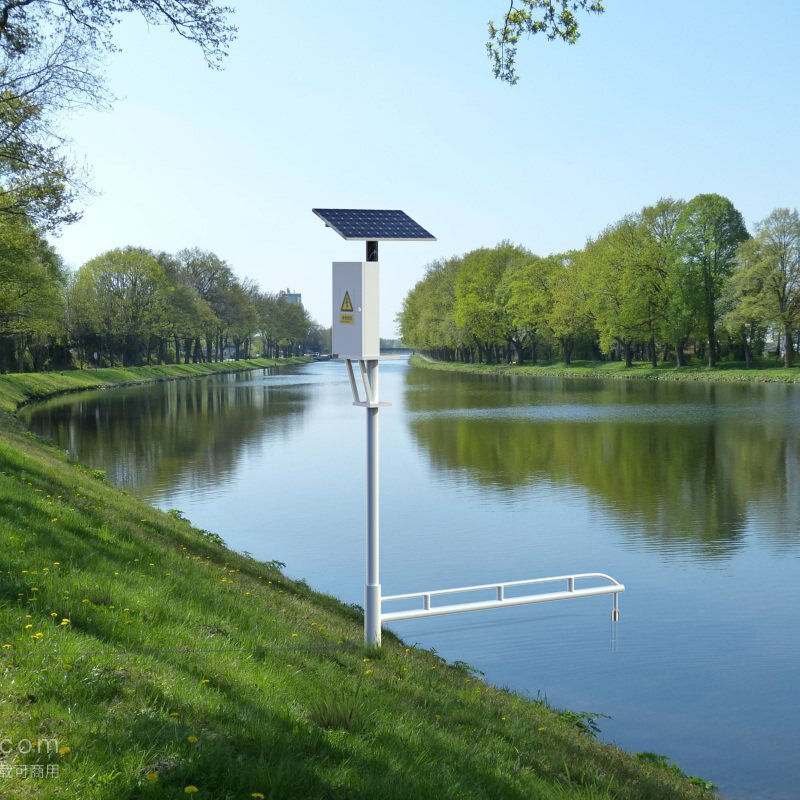

Pole-mounted monitoring along riverbanks
-

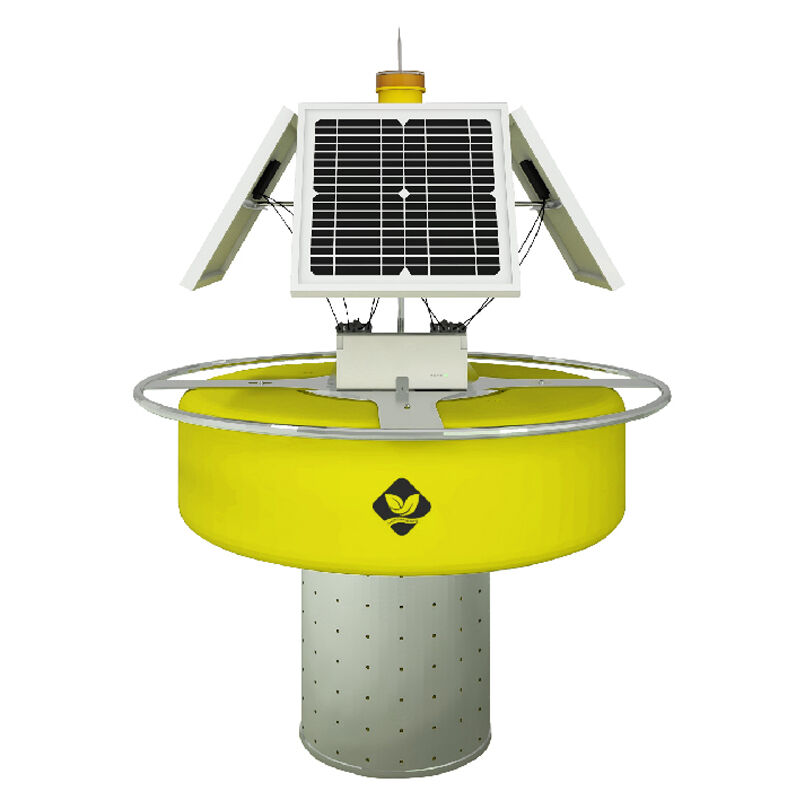

Central buoy monitoring in lakes and reservoirs
Product Advantages
a. Identify water quality characteristic values using AI spectral model algorithm.
b. Monitoring data is displayed in a visual manner, allowing for viewing of historical curves.
c. 7*24-hour continuous online monitoring, real-time early warning and forecast.
d. Supports long-term data analysis and water fingerprint data traceability.
Standardized and Customized Services
We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analysis and artificial intelligence technology, we are committed to intelligent manufacturing and providing customers with excellent products and services. Our offerings include a range of high-performance standardized products that have undergone rigorous testing to meet diverse industry needs. We also offer custom solutions, where our dedicated design team creates tailored solutions for unique requirements. Through comprehensive services, we create high-quality mechanical products and system solutions with meticulous craftsmanship.
Minimum Order Quantity
1 unit.
After-sales Warranty Time
One year after installation.
