Multi-parameter Full-spectrum Water Quality Online Monitoring Station Equipment Data

Overview

Video Off-site Inspection	Can provide	Installed Power	Peak power: 150 W
Voltage	220V AC, 50Hz, customizable photovoltaic power supply	Warranty Period	1 year
Inspection Report	Can provide	Weight	154 KG
Core Components	Xenon lamp, spectrometer, diaphragm pump, sensor electrode	Main Material	Carbon steel, IP53 rating
Country of Origin	Anhui, China	Function	Water quality monitoring device
Product Name	Multi-parameter full-spectrum water quality online monitoring station	Type	On the ground
Product Color	Customizable	Control	Electrical automatic control
Operation	Automatically execute	Minimum Order Quantity	1 unit
Brand	SECCO	Core Component Warranty	1 year
Provide After-sales Service		Drawings, videos, installation and operation and maintenance manuals, on-site services

Product Specifications

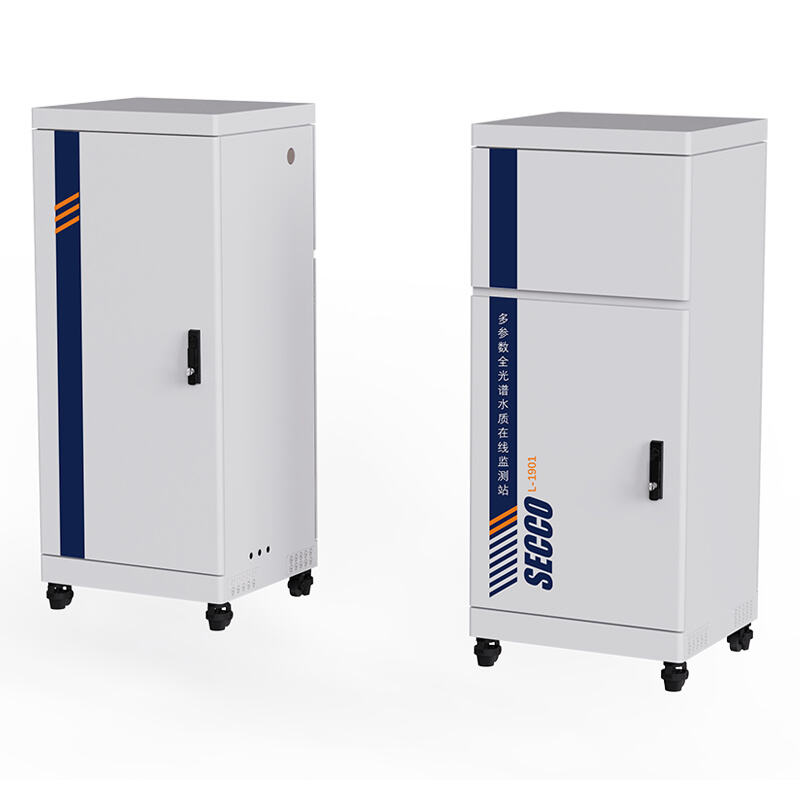

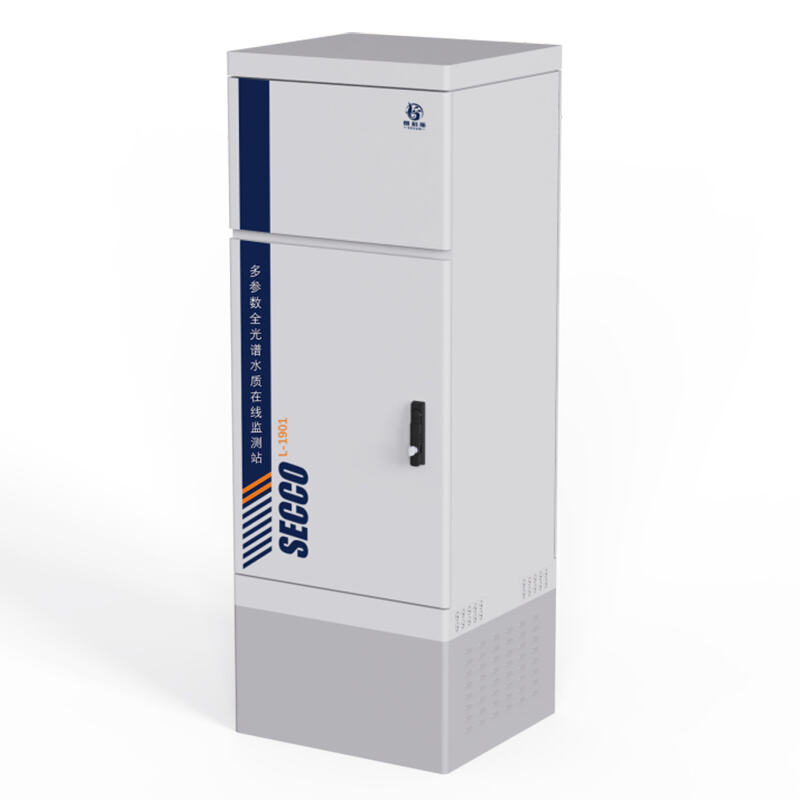

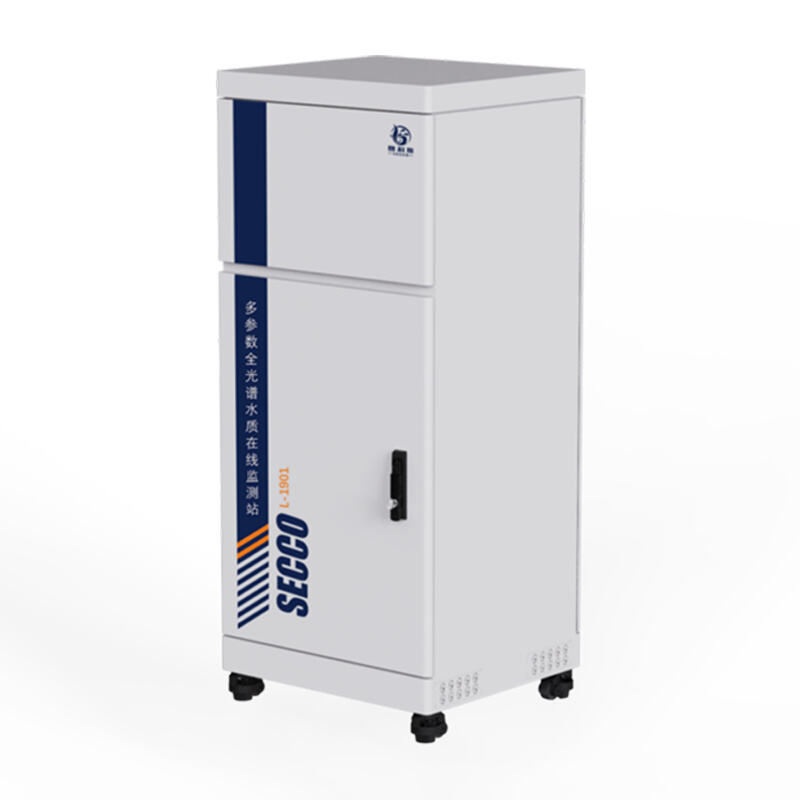

Equipment Appearance Diagram

The SECCO-L-1901 multi-parameter full-spectrum water quality online monitoring station utilizes spectral absorption detection of pollutants in water across the ultraviolet, visible, and near-infrared (UV/VIS/NIR) spectral bands. It performs modeling analysis on full-spectrum data and employs artificial intelligence for deep learning, enabling quantitative analysis of relevant water quality indicators based on real-time spectral data. This product is faster and more accurate than traditional single-wavelength, dual-wavelength, or multi-wavelength detection technologies. When combined with water sampling and pretreatment modules, it enables comprehensive water quality monitoring through big data and network platforms. The measurable parameters include: chemical oxygen demand (COD), potassium permanganate index, five-day biochemical oxygen demand (BOD₅), total nitrogen (TN), ammonia nitrogen (NH3-N), nitrate nitrogen (NO3-N), nitrite nitrogen (NO2-N), total phosphorus (TP), pH, temperature, turbidity, dissolved oxygen (DO), conductivity, suspended solids (SS).

Product Composition

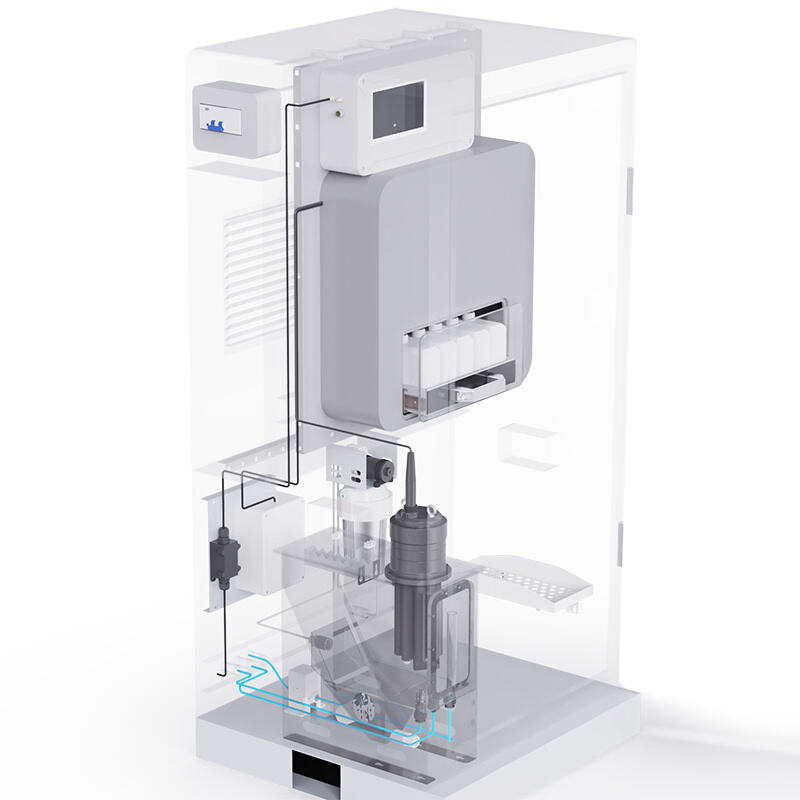

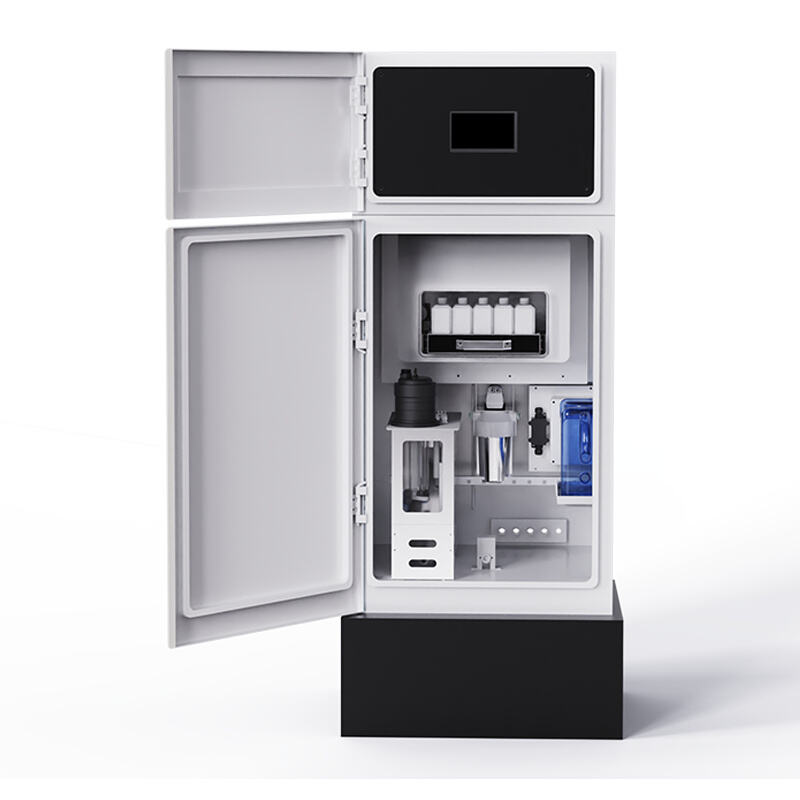

The whole system is mainly composed of xenon lamp, spectrometer, diaphragm pump, sensor electrode.

Technical Principle

Full-band scanning of ultraviolet-visible light + Neural network algorithm analysis.

Production Cycle

1 unit: 15 days

2-5 units: 30 days

6-10 units: 45 days

11 units or more: To be determined

Support For Customization Options

Packaging Size

720×655×1555(L×B×H)(mm)

Application Scenarios

Installed and used separately indoors or outdoors, for surface water and pollution source water quality monitoring.

Application Cases

Xiatang Reservoir, a backup water source, will be equipped with front-end monitoring equipment (multi-parameter full-spectrum online water quality monitoring stations), a regulatory system platform, and a data middleware platform to improve water quality stability and reduce potential water pollution risks.

The regulatory platform detected two water quality anomalies, ten rural sewage treatment facility malfunctions, five illegal intrusions into water source protection areas, and eight cases of illegal fishing requiring dispersal, thereby improving the level of reservoir water safety management.

Product Advantages

a. Compact, Smart and Digital: The equipment is lightweight and easy to deploy, integrating intelligent processing and digital technology.

b. Low-power Design with MPPT Solar Compatibility: Energy-saving operation, compatible with solar power supply technology (MPPT optimized power generation).

c. Second-level High-frequency Detection and 24/7 Automation: Real-time rapid monitoring (response within seconds), 24-hour unattended operation.

d. Full-spectrum Coverage (190-820 nm): Broad spectrum detection capability (UV to NIR).

e. Automatic-ranging and Adaptive Optical Path: Automatically adjusts the detection range to suit different turbidity levels in water bodies, from surface water to sewage.

f. Automatic Light Source Intensity Adjustment: Dynamically compensates for light source attenuation to reduce system errors.

g. AI Edge Computing with Real-time DNN Inference: Localized AI real-time data processing (no cloud dependency required).

h. AI Self-diagnosis, Self-cleaning, and Anti-algae (Zero Reagents, Zero Pollution): Intelligent maintenance system (automatic algae removal and anti-fouling), no chemical pollution, low-cost operation and maintenance.

i. Water Quality Trend Monitoring and Anomaly Alerts: Real-time analysis of water quality fluctuations, triggering abnormal alerts.

j. Data Storage, Remote Transmission, and Historical Traceability: Supports local data storage, cloud synchronization, and historical record retrieval.

k. Device Self-check and Remote Monitoring: Automatic diagnosis of equipment health, supporting remote management.

l. Expandable (Non-spectroscopic Sensors and Auto-sampling): Other sensor types can be added, compatible with sampler linkage.

m. Access Control Logs and Remote Unlocking: Operational Permission Management (Access Logging + Remote Control Unlocking).

n. Customizable Expansion for Diverse Water Bodies: Modular design, flexible customization of functions according to scenarios.

Standardized and Customized Services

We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analysis and artificial intelligence technology, we are committed to intelligent manufacturing and providing customers with excellent products and services. Our offerings include a range of high-performance standardized products that have undergone rigorous testing to meet diverse industry needs. We also offer custom solutions, where our dedicated design team creates tailored solutions for unique requirements. Through comprehensive services, we create high-quality mechanical products and system solutions with meticulous craftsmanship.

Minimum Order Quantity

1 unit.

After-sales Warranty Time

One year after installation.

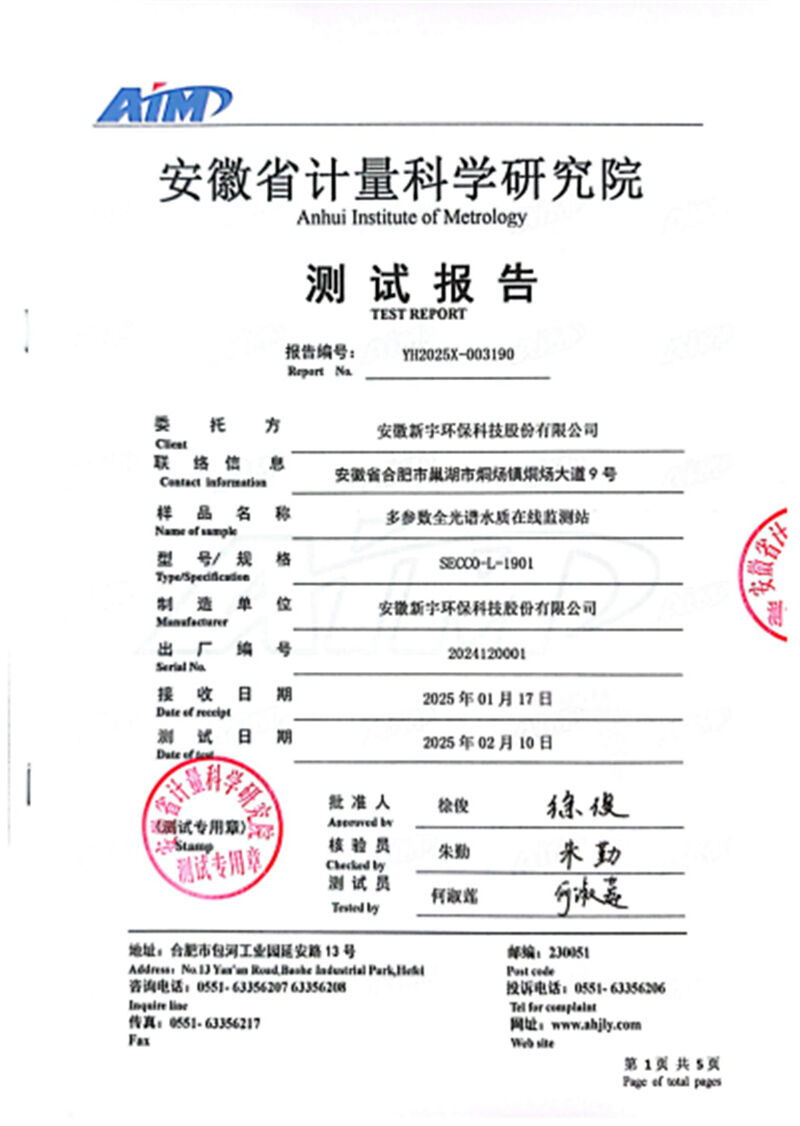

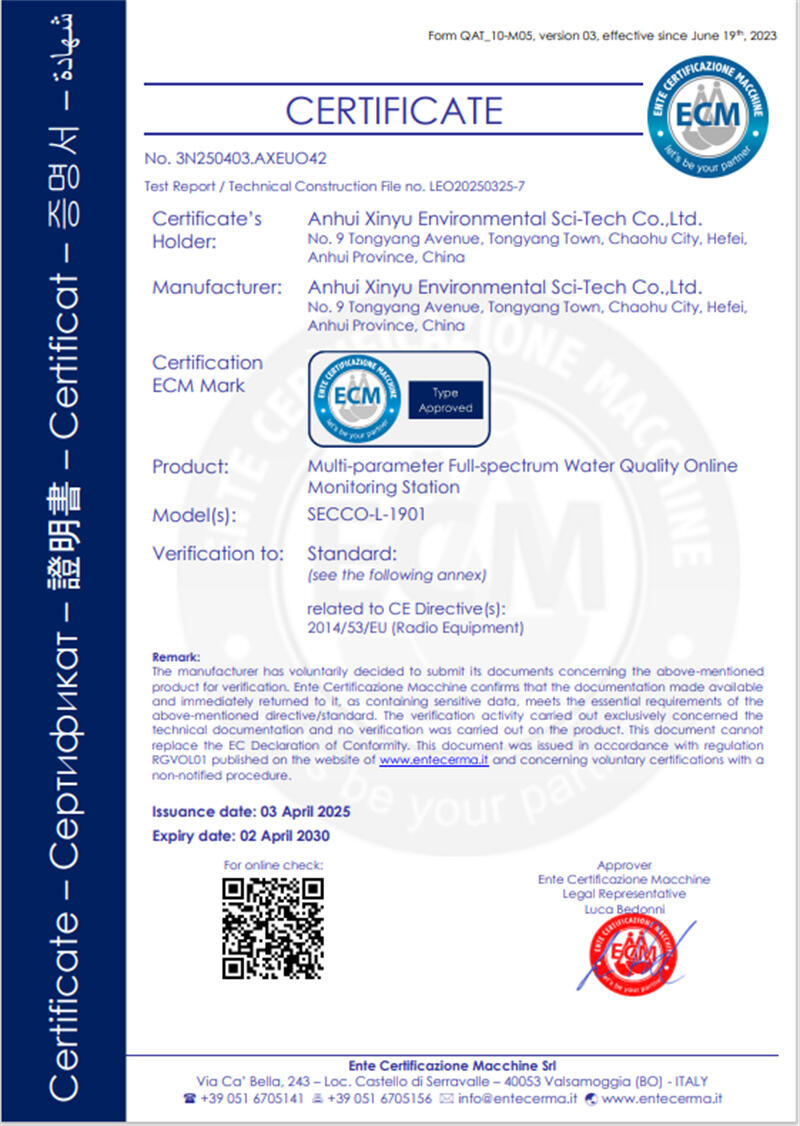

Certification Certificate
