Vacuum low temperature heat pump evaporator equipment data

Overview

Video off the factory and check	Can provide	Handling capacity	30m3/d
Size (mm) (L×B×H)	6200×2650×4200	Installed power	187.5kW
Inspection report	Can provide	Defects liability period	1 year
Core components	Evaporator, heat pump compressor, vacuum device, automatic control system	Voltage	220V, 380V, customizable
Country of origin	Anhui, China	Material in contact with the material	316L/2205/2507/TA2
Product name	Vacuum low temperature heat pump evaporator	Function	Evaporation/condensation/crystallization
Colour	Customizable	Application scenarios	High concentration organic wastewater, high salt wastewater, etc
Delivery time	100 days	Control	Electrical automation control
Brand	SECCO	Minimum order quantity	1 unit
Core component warranty	1 year	Provide after-sales service	Drawings, videos, installation and operation and maintenance manuals, on-site services

Product Specifications

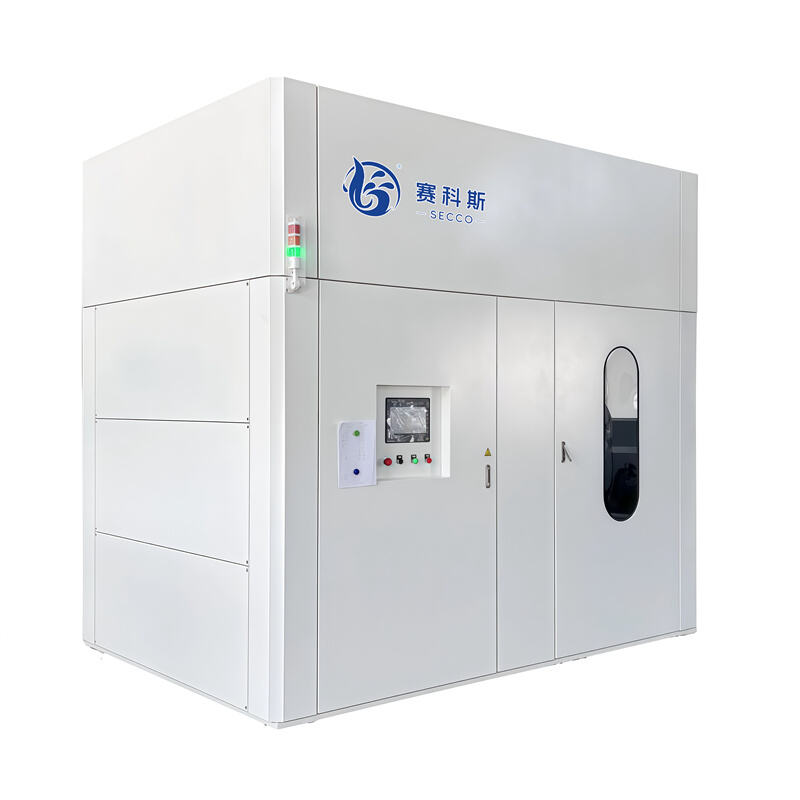

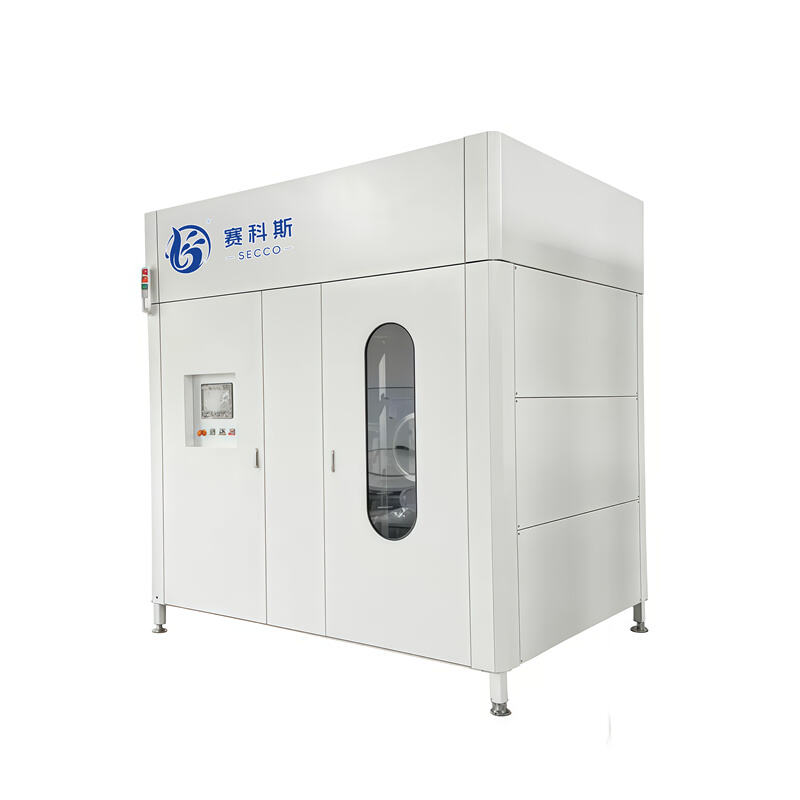

Equipment Appearance Diagram

A vacuum low-temperature heat pump evaporator is an energy-efficient device that combines heat pump technology with evaporation processes. Its core function is to achieve the evaporation, concentration, or crystallization of moisture or solvents in materials at lower temperatures (typically 40-60℃), while simultaneously recovering heat from secondary steam through the heat pump system, significantly reducing energy consumption.

Technical Principle

a. When materials enter the evaporator, they are heated by the condenser in the heat pump system, where low-temperature evaporation generates secondary steam; b. This secondary steam then enters the heat pump's evaporator, releasing latent heat absorbed by the refrigerant, which subsequently condenses into liquid water;

c. After absorbing heat, the refrigerant is compressed by the compressor to increase temperature, then transfers thermal energy through the condenser to the material undergoing evaporation, thereby forming a continuous heat circulation cycle.

d. The final material is evaporated several times to achieve the target concentration and complete the concentration or dehydration process.

Production Cycle

Packaging Dimensions

Support For Customization Options

Application Scenarios

a. Industrial wastewater treatment: cutting fluids, grinding fluids, cleaning agents, mold release agents, electroplating wastewater, cleaning wastewater, spray painting wastewater, high-salt wastewater, and high COD wastewater;

b. New energy industry: battery production wastewater, photovoltaic industry wastewater, wind power maintenance wastewater;

c. Chemical and hazardous waste disposal: high-concentration organic waste liquids, acidic/alkaline waste liquids, chemical nickel plating wastewater, and concentrated chemical reaction byproducts;

d. Food and pharmaceuticals: fruit juices, dairy products, herbal extracts, medicinal extracts;

e. Environmental protection and others: landfill leachate, sludge concentrate, high ammonia nitrogen wastewater.

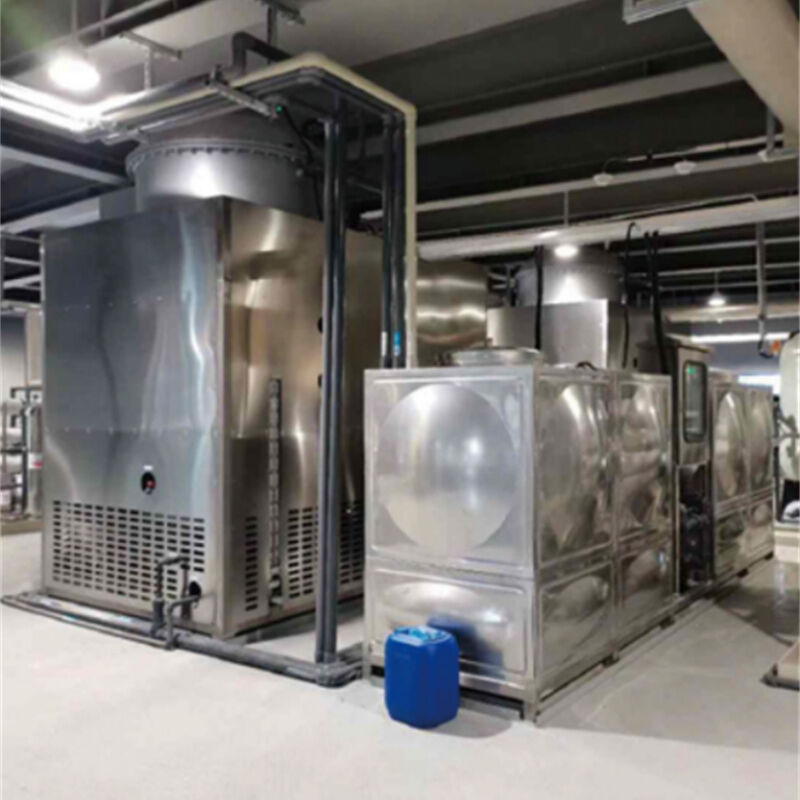

Application Cases

Machine tool waste water

Inflow: COD 5890mg/L, ammonia nitrogen 198mg/L, conductivity 29750us/cm; Outflow: COD 108mg/L, ammonia nitrogen 14mg/L, conductivity 68us/cm; Evaporator concentration ratio up to 10 times.

Product Advantages

Low-temperature protection, activity retention

With low evaporation temperatures, it effectively prevents degradation and denaturation of heat-sensitive materials while preserving original flavors and active ingredients, making it particularly suitable for high-quality materials.

High efficiency and energy saving, with low operating costs

Utilizing heat pump energy recovery technology to recover latent steam heat, energy consumption is only 1/3 to 1/5 of traditional steam evaporators, significantly lowering operational costs.

Modular design, compact in size

Compact structure, modular integration, small floor area, adaptable to various site conditions, flexible installation, and convenient for expansion.

Intelligent control, with high degree of automation

The PLC automatically adjusts parameters such as temperature, pressure, and feed volume, featuring a fault warning function, supporting continuous and stable production, and reducing manual operations.

Strong adaptability, wide processing range

It can handle complex materials such as high-salt, high-organic matter, and high-viscosity substances. The feed concentration range is wide, and there is no need for frequent process adjustments. The operation is stable.

Clean and convenient, simple maintenance

The design takes into account the requirements for automatic cleaning and maintenance. Key components are easy to inspect and repair, reducing downtime and improving equipment utilization and lifespan.

Standardization And Customization Services

We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding applications of big data analytics and artificial intelligence technologies, we dedicate ourselves to smart manufacturing to deliver outstanding products and services. Our offerings include a range of rigorously tested, high-performance standardized products tailored to diverse industry needs. We also provide customized solutions through our professional design team, creating tailored solutions that meet unique requirements. Committed to comprehensive services, we craft premium mechanical products and system solutions with meticulous craftsmanship.

Minimum Order Quantity

1 unit.

After-sales Warranty Time

One year after installation.
