Water Environment Online Monitoring Communication Host Equipment Data
Product Model: SECCO-R-1000
Overview
| Video Off-site Inspection | Can provide | Installed Power | 1 W (specific power depends on the connected water quality sensor) |
| Voltage | 12V/24V DC | Warranty Period | 1 year |
| Inspection Report | Can provide | Weight | 2.3 KG |
| Core Components | Communication motherboard | Main Material | Aluminum alloy, IP68 rating |
| Country of Origin | Anhui, China | Function | Data transmission |
| Product Name | Water environmental online monitoring communication host | Type | On or under the ground |
| Product Color | Customizable | Control | Electrical automatic control |
| Operation | Automatically execute | Minimum Order Quantity | 1 unit |
| Brand | SECCO | Core Component Warranty | 1 year |
| Provide After-sales Service | Drawings, videos, installation and operation and maintenance manuals, on-site services | ||
Product Specifications
| Content | Parameter |
| Equipment Size (L×B×H) (mm) | 160×85×240 |
| Weight of Equipment (kg) | 2.3 |
| Installed Power (W) | 1 W (specific power depends on the connected water quality sensor) |
| Power Supply | 12V/24V DC |
| Ambient Temperature (℃) | -5-60 |
| Communication Mode | Ethernet, 4G, NB-IoT, Lora |
| Waterproof Rating | IP68 |
| Communication Protocol | Standard protocols can be customized |
| Interfaces | 2 RS485, 1 R232; 4 analog quantities; 4 I/O ports |
| Interaction | Bluetooth applet or host software interaction |

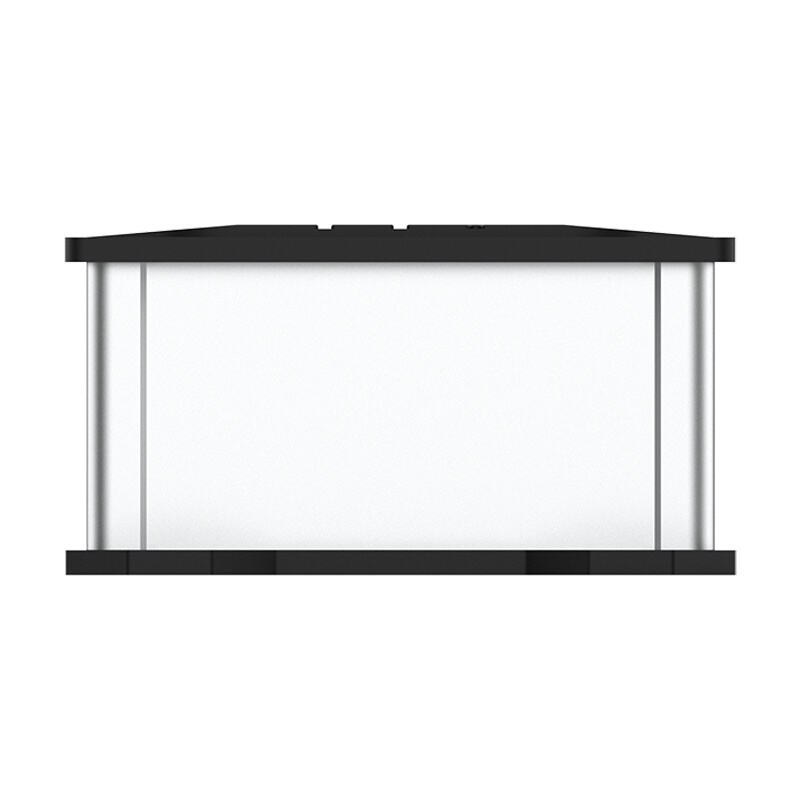

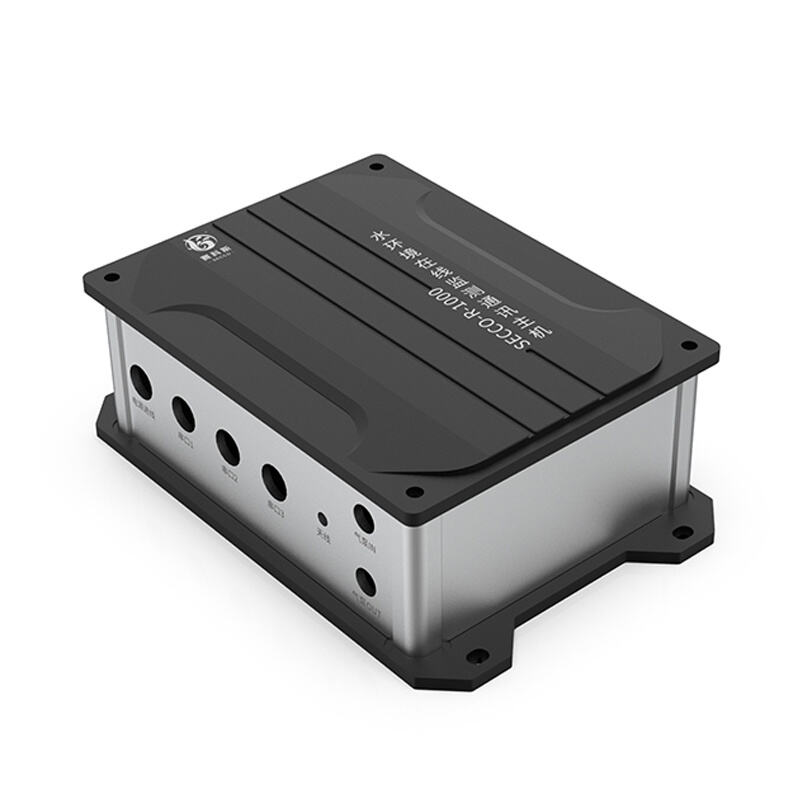

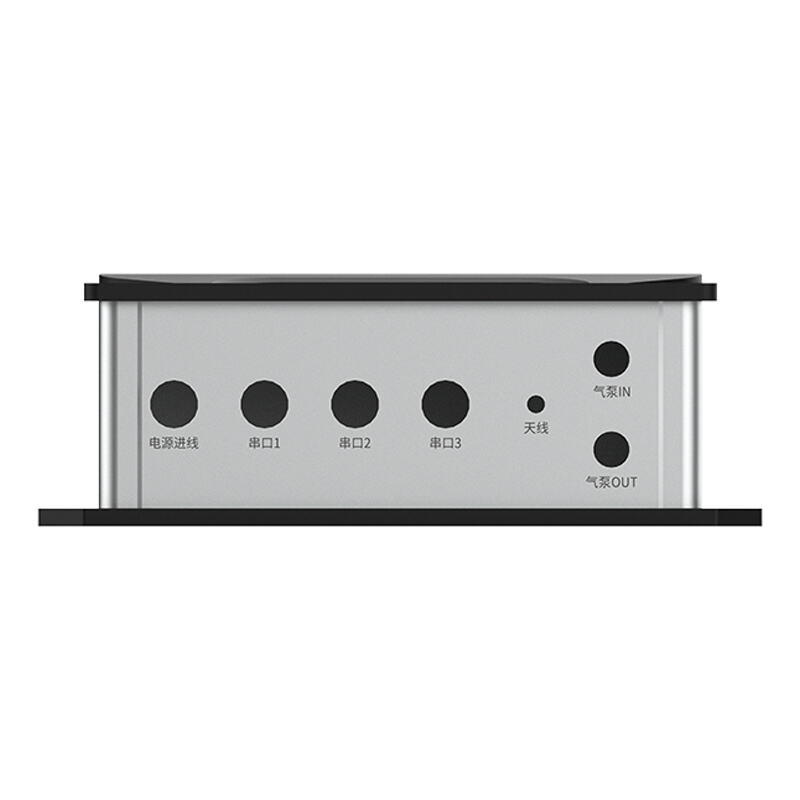

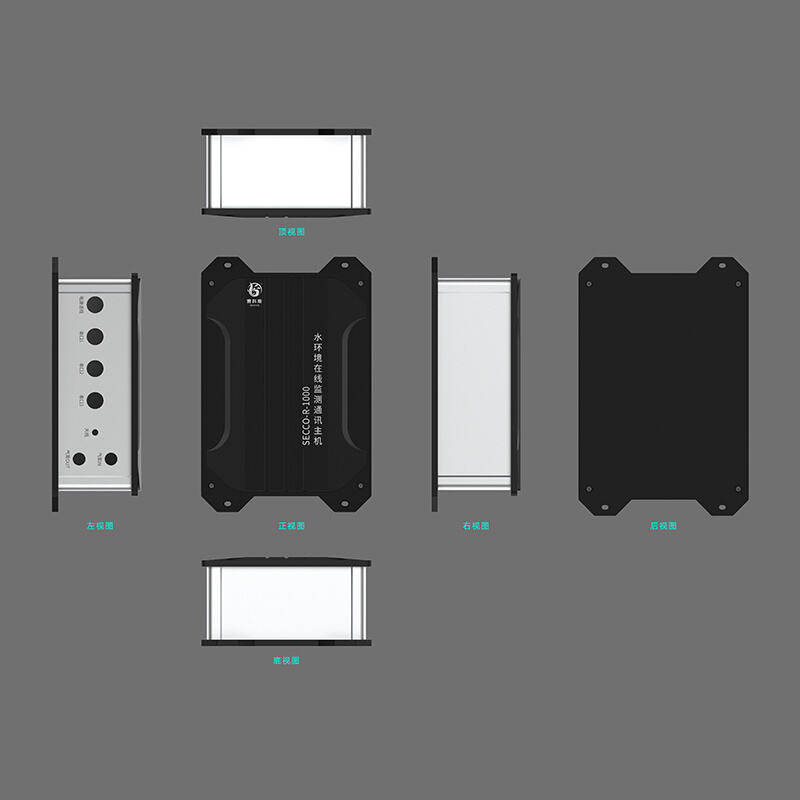

Equipment Appearance Diagram
The SECCO-R-1000 water environmental online monitoring communication host is compatible with multiple data transmission protocols and supports 4G, NB-IoT, LoRa, and other communication solutions. It can be connected to digital and analog sensors. The communication host meets IP68 protection requirements and complies with salt spray testing and level 3 lightning protection standards.
Product Composition

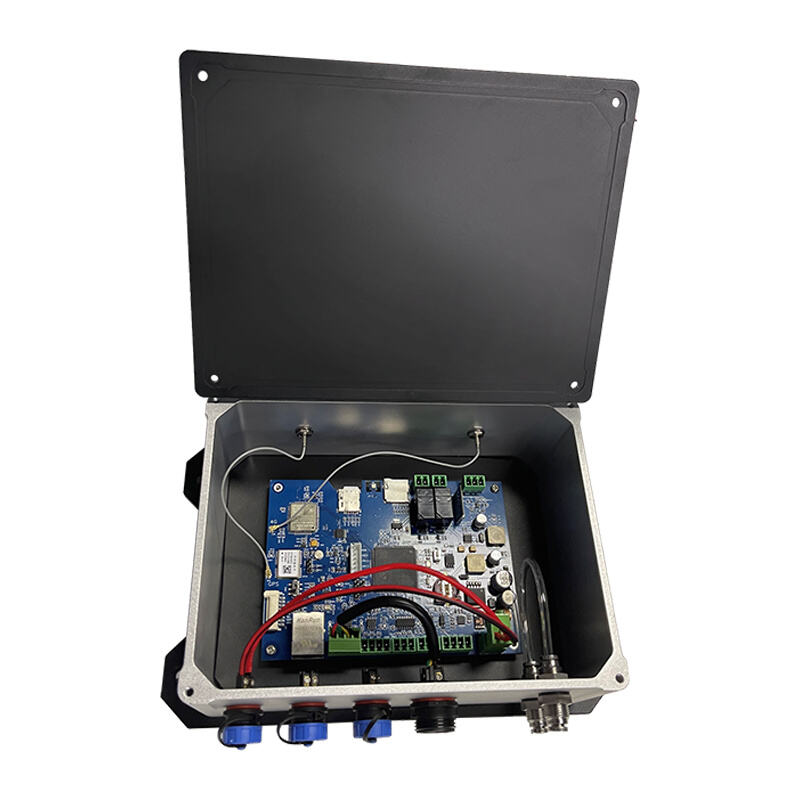

The whole system is mainly composed of communication motherboard.
Technical Principle
4G, NB-IoT, Lora communication.
Production Cycle
4. Production Cycle
1-5 units: 20 days
6-20 units: 45 days
21 units or more: To be determined
Support For Customization Options
| Option | Minimum Order | Customization Costs |
| Custom Nameplates | 1 | - |
| Custom Made Logo | 1 | - |
| Host Computer Software Interface | 1 | - |
Packaging Size
270×110×200(L×B×H)(mm)
Application Scenarios

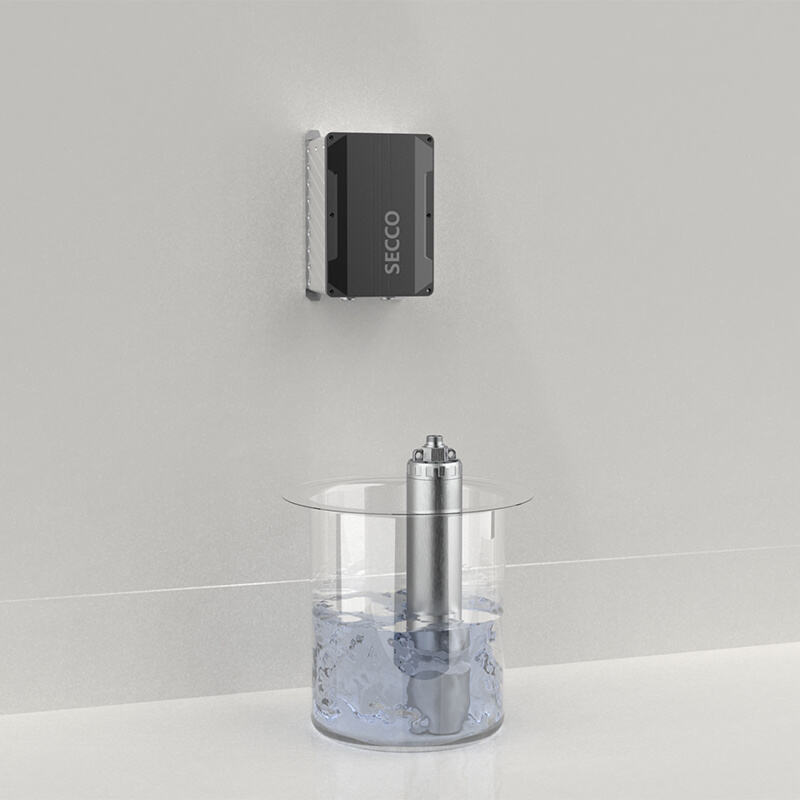

Can be integrated into poles, buoys, or manholes and connected to water quality monitoring equipment for use.
Product Advantages
a. Adopt modular design.
b. Built-in attitude sensor.
c. Wireless communication, support private network communication.
d. Support remote parameter setting, viewing, and remote device maintenance.
Standardized and Customized Services
We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analysis and artificial intelligence technology, we are committed to intelligent manufacturing and providing customers with excellent products and services. Our offerings include a range of high-performance standardized products that have undergone rigorous testing to meet diverse industry needs. We also offer custom solutions, where our dedicated design team creates tailored solutions for unique requirements. Through comprehensive services, we create high-quality mechanical products and system solutions with meticulous craftsmanship.
Minimum Order Quantity
1 unit.
After-sales Warranty Time
One year after installation.
