Water supply single-parameter water quality online analyzer equipment data
Product Model: SECCO-C-1 series
SECCO-C-1210 Low-Range Turbidity Online Analyzer (KD, No Pressure)
SECCO-C-1220 Low-Range Turbidity Online Analyzer (P1, Pressurized)
SECCO-C-1100 pH Online Analyzer
SECCO-C-1500 Residual Chlorine Online Analyzer
SECCO-C-1510 Residual Chlorine pH Online Analyzer
Overview
| Video off-site inspection | Can provide | Monitoring capabilities | According to different monitoring equipment models, turbidity, residual chlorine, and pH can be detected separately |
| Voltage | 220V AC, 50Hz, Customizable photovoltaic power supply available | Installed power | 10W |
| Device Size (L×B×H) | 310×200×430(mm) | Inspection report | Can provide |
| Warranty coverage | 1 year | Core components | Water quality sensor |
| Weight | 10 kg | Country of origin | Anhui, China |
| Main material | Carbon steel, IP53 grade | Product Name | Water supply single-parameter water quality online analyzer |
| Function | Water supply quality monitoring | Product color | Customize |
| Operate | Automated execution | Control | Electrical automatic control |
| Brand | SECCO | Minimum order quantity | 1 unit |
| Core component warranty | 1 year | Provide after-sales service | Drawings, videos, installation and operation manuals, on-site service |
Product Specifications
| Parameter | Specification | |
| Residual chlorine | Measurement range | 0.01mg/L~5.00mg/L |
| Resolution | 0.01mg/L | |
| Precision | ± 0.05mg/L or 5% | |
| pH | Measurement range | 0~14pH |
| Resolution | 0.01pH | |
| Precision | ±0.1pH | |
| Turbidity | Measurement range | 0~20NTU |
| Resolution | 0.001NTU | |
| Precision | ±0.02NTU or 2% | |
| Temperature | Measurement range | 0~60℃ |
| Resolution | 0.1℃ | |
| Precision | ±0.3℃ | |
| Working conditions | Ambient temperature: 5~40°C; Relative humidity < 90% RH | |
| Relay output | 4 loads AC220V 10A | |
| AC power | 186~240V 50/60HZ | |
Equipment Appearance Diagram

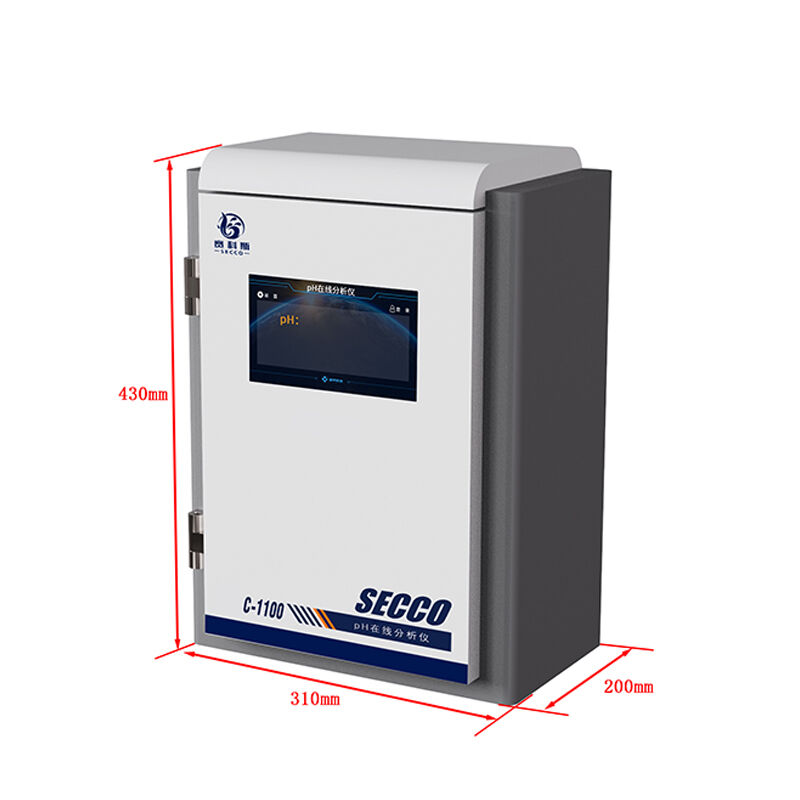

pH online analyzer

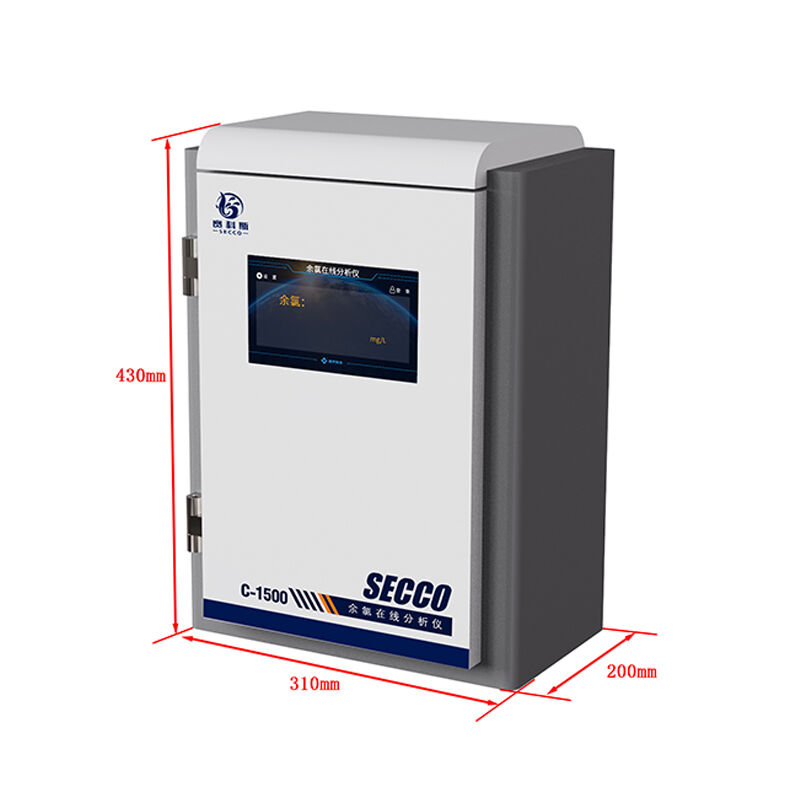

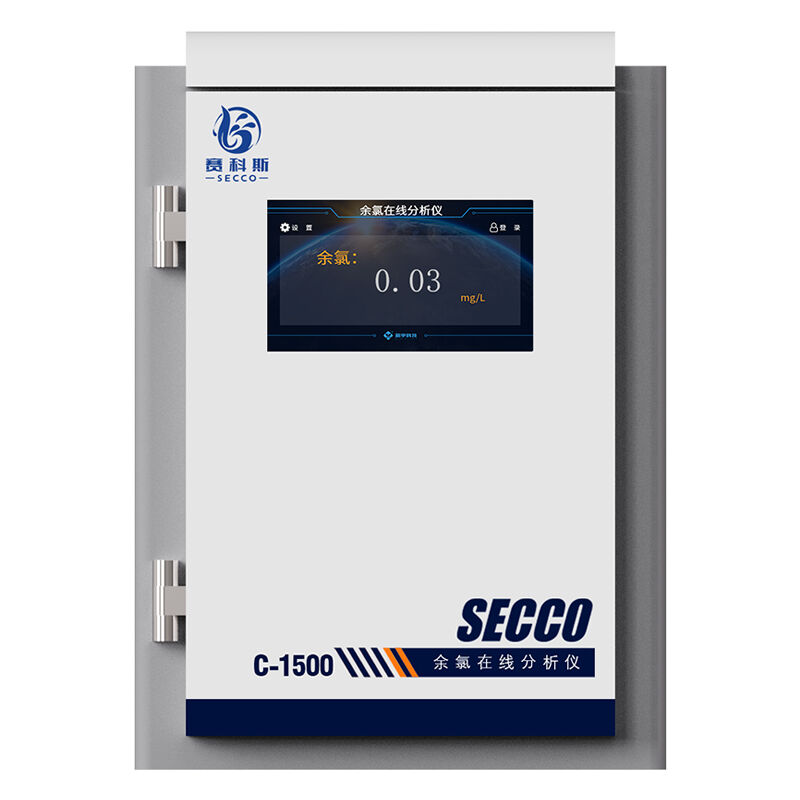

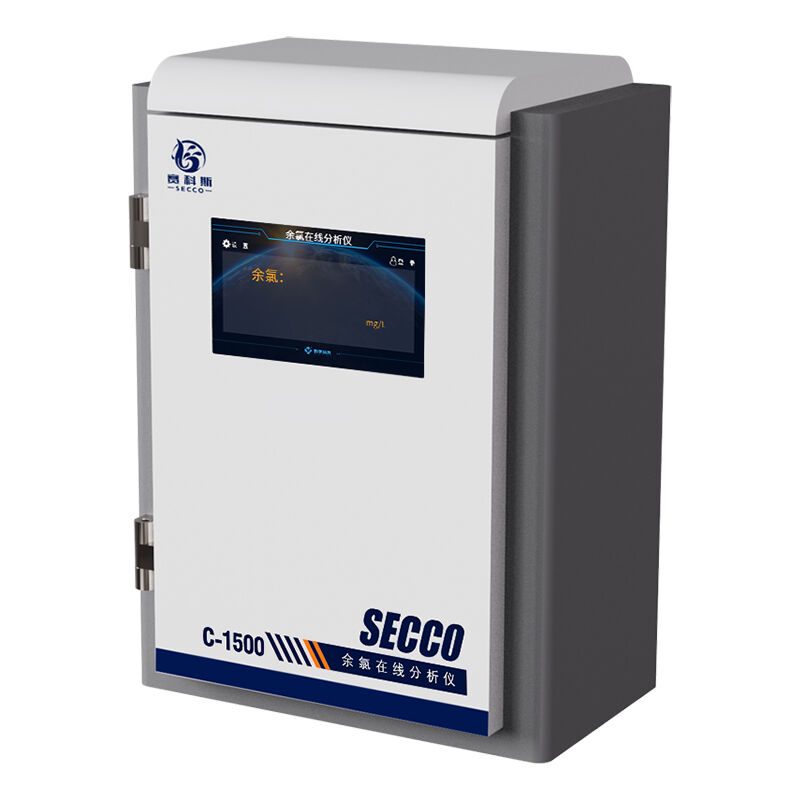

Online residual chlorine analyzer

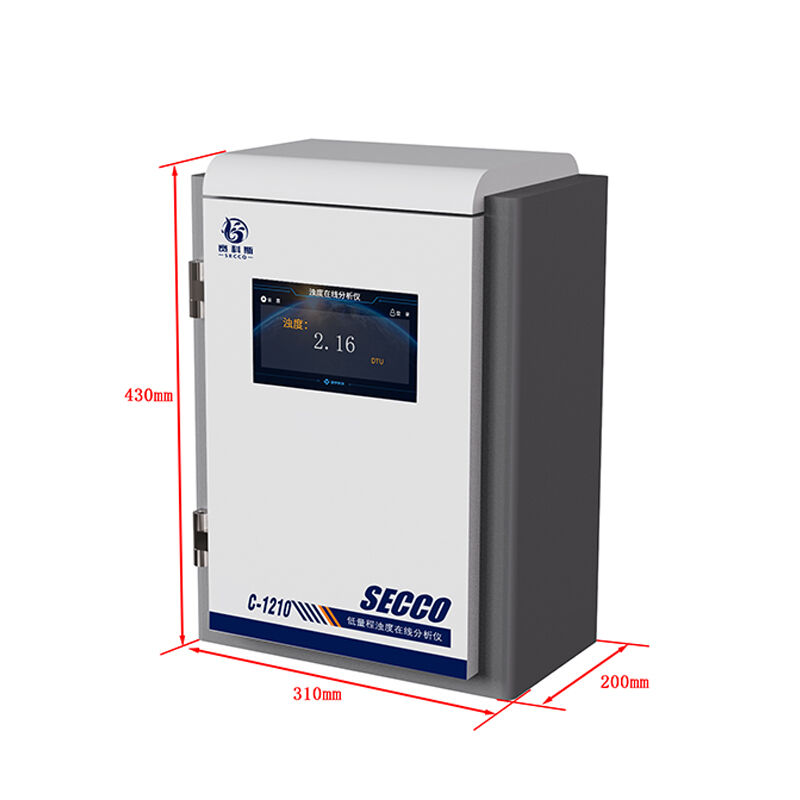

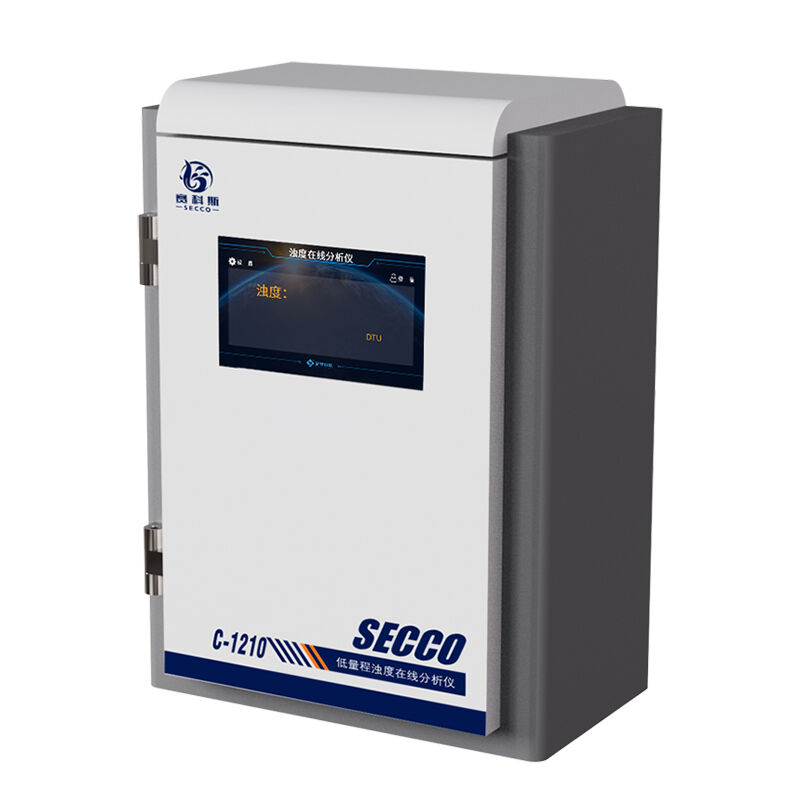

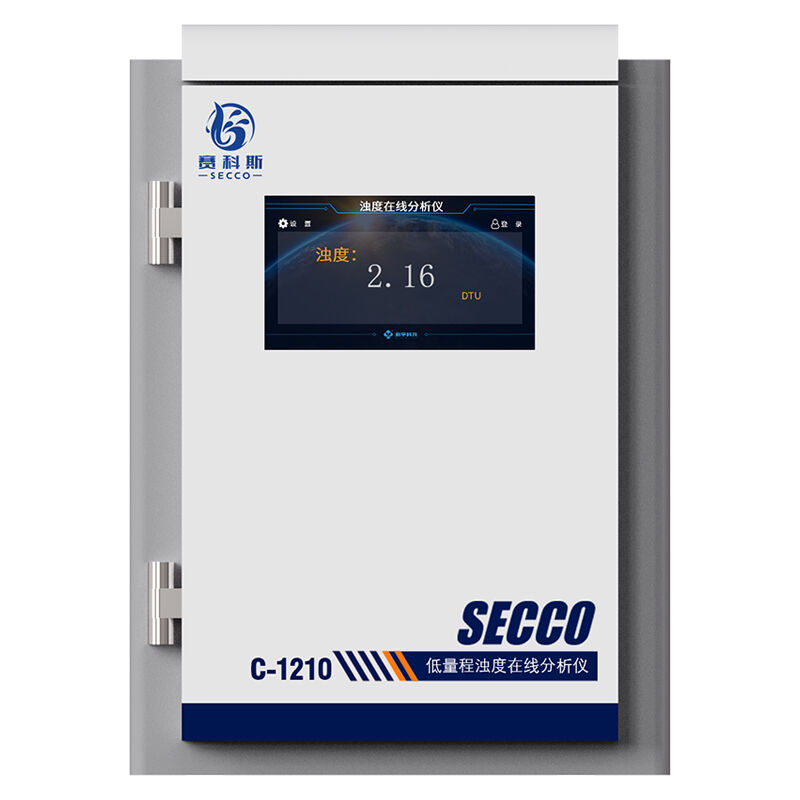

Low-range turbidity online analyzer
SECCO-C-1 series of single-parameter water quality online analyzers are products developed and designed by SECCO for water quality safety monitoring of water plants, drinking water, and secondary water supply. The conventional monitoring indicators of the product are one of pH, low-range turbidity, temperature, residual chlorine, etc.; It is compatible with other monitoring indicator equipment of SECCO, and can expand other monitoring parameters such as conductivity and ORP. The equipment provides functions such as over-standard warning, water shortage alarm, and flow rate display. Built-in data transmission module, one-click access to the remote data platform, product inlet and outlet water design adopts quick plug-in design, internal module partition, to meet the needs of convenient installation and maintenance.
Technical Principle
Turbidity: 90° light scattering method;
pH: glass electrode method;
Residual chlorine: three-electrode method.
Production Cycle
1 unit: 15 days
2-5 units: 30 days
6-20 units: 45 days
More than 21 units: To be determined
Support Customization Options
| Option | Minimum order quantity | Customization cost |
| Custom nameplates | 1 | - |
| Customized logo | 1 | - |
| Software system identification | 1 | - |
Packing Size
Carton packing (L×B×H): 370×260×510 (mm).
Application Scenarios
Water quality safety monitoring of waterworks, drinking water, and secondary water supply.
Product Advantages
a. Single-parameter intelligent testing, infinite expansion
Online real-time monitoring of residual chlorine/low turbidity/pH/water temperature, the measurement parameters can be expanded.
b. Self-cleaning circulation and worry-free maintenance
The flow tank has automatic drainage and cleaning function, reducing maintenance costs.
c. Intelligent control of waterways, adaptation to the whole environment
The waterway is equipped with electronically controlled ball valves and filters, suitable for various installation environments.
d. Quick plug and install, instant waterway
Quick plug-in design for water inlet and outlet, easy to install.
e. Friendly interaction and easy operation
Good human-computer interaction experience, simple and easy to operate the instrument.
f. Visualize the derivatives, efficient and worry-free
You can view data charts and support one-click export of data.
g. One-click cloud connection, remote intelligent viewing
One-click access to the data platform is convenient for remote viewing.
Standardized And Customized Services
We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analysis and artificial intelligence technology, we are committed to intelligent manufacturing and providing customers with excellent products and services. Our offerings include a range of high-performance standardized products that have undergone rigorous testing to meet diverse industry needs. We also offer custom solutions, where our dedicated design team creates tailored solutions for unique requirements. Through comprehensive services, we create high-quality mechanical products and system solutions with meticulous craftsmanship.
Minimum order quantity
1 unit.
After-sales warranty time
One year after installation.
