Commercial water purifier equipment information

Overview

Video off the factory and check	Can provide	Mechanical test report	Can provide
Voltage	Customizable	Water yield	10T/H
Core components	Anionic and cationic resins	Defects liability period	1 year
Country of origin	Anhui China	Main material	FRP/304/316
Product name	Resin online water reuse equipment	Function	Prepare deionized water
Colour	Customizable	Operate	Automata
Application scenarios	Industrial effluent	Control	Electrical automatic control (Siemens PLC)
Brand	SECCO	Minimum order quantity	1 unit
Provide after-sales service	Drawings, videos, installation and operation and maintenance manuals, on-site services

Product Specifications

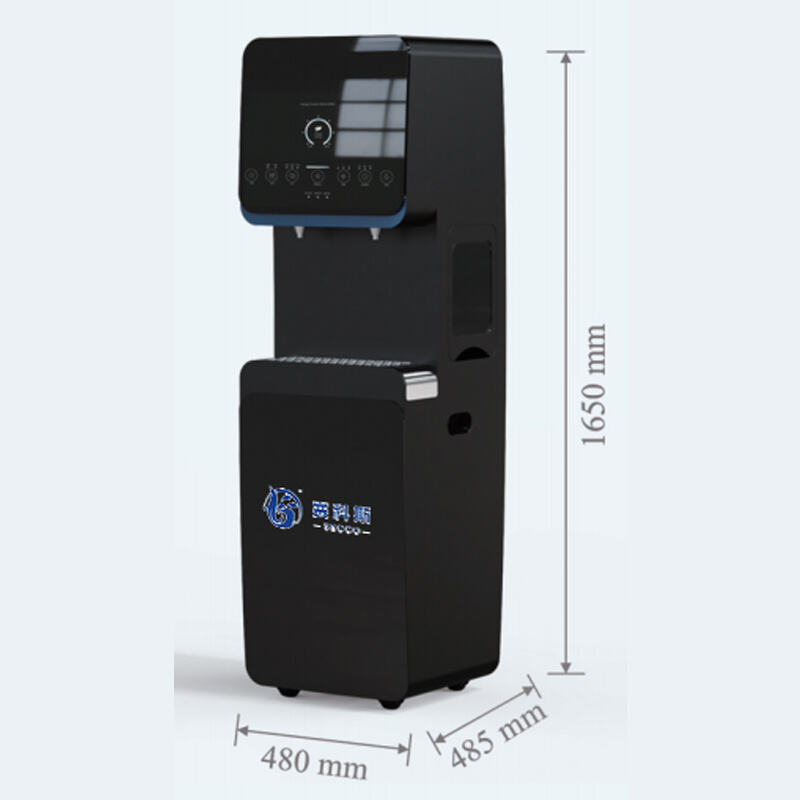

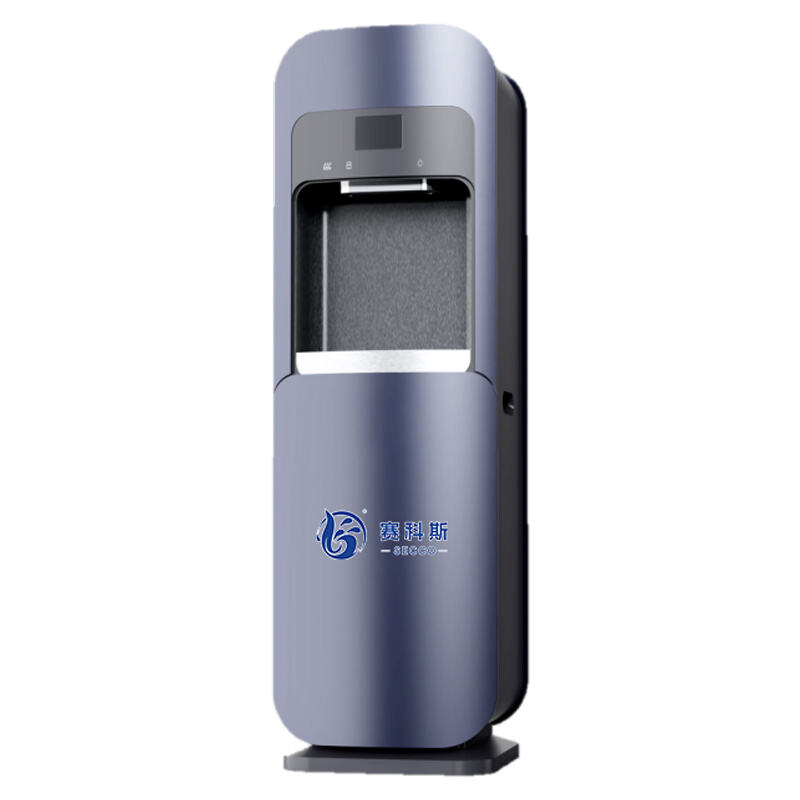

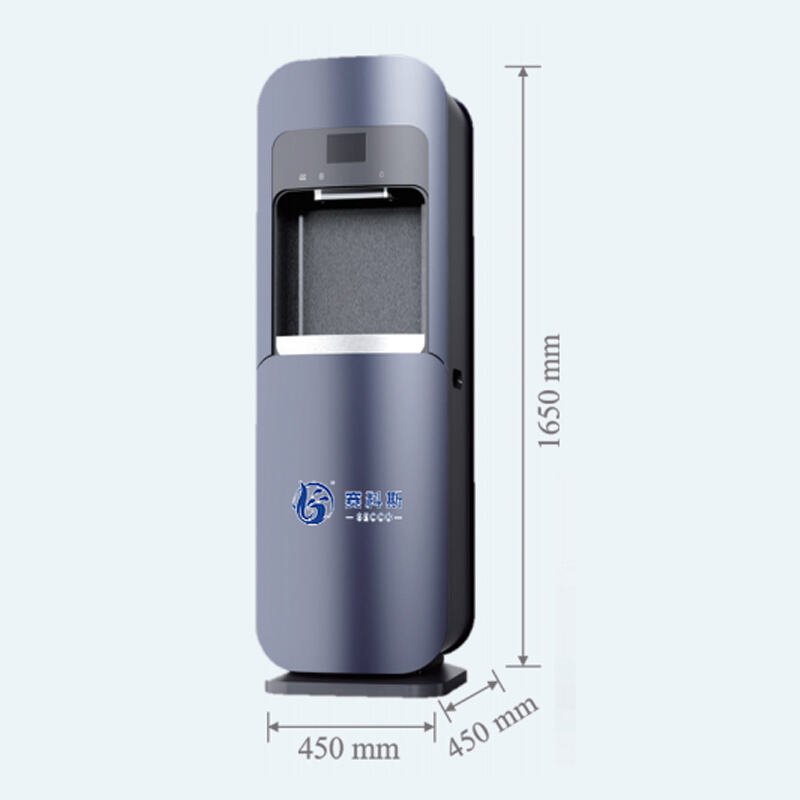

Equipment Appearance Diagram

Spring-SJ series commercial water purifiers use municipal tap water as raw water, five-stage high-efficiency reverse osmosis filtration technology and advanced ultraviolet sterilization system to ensure pure and safe water quality. The design capacity meets the needs of 30-50 people at the same time.

Commercial Water Purifier 1.0:

Function: The equipment integrates room temperature water to produce hot water and high-efficiency water purification functions. Equipped with a 4.0G large-capacity pressure barrel, sturdy and durable, touch buttons, UV germicidal lamps, etc. to fully ensure the safety of effluent water quality.

Application scenarios:

It is suitable for multiple places such as office offices, commercial buildings, and schools.

Commercial Water Purifier 2.0:

Function: The equipment integrates room temperature water, hot water, ice water, fast ice and efficient water purification functions. The device has added a smart display screen that can be connected to the mobile phone APP to intelligently monitor water quality.

Application scenarios: It is suitable for units, commercial buildings, schools and other places that require ice water and ice cubes.

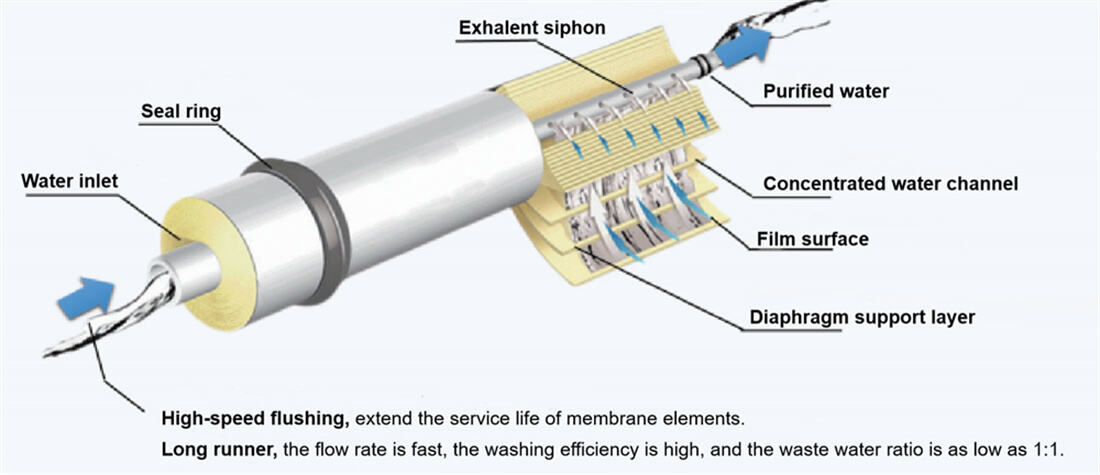

Core Component Composition

The whole system is mainly composed of water inlet, sealing layer, diaphragm support layer, membrane surface, concentrated water channel and water production pipe.

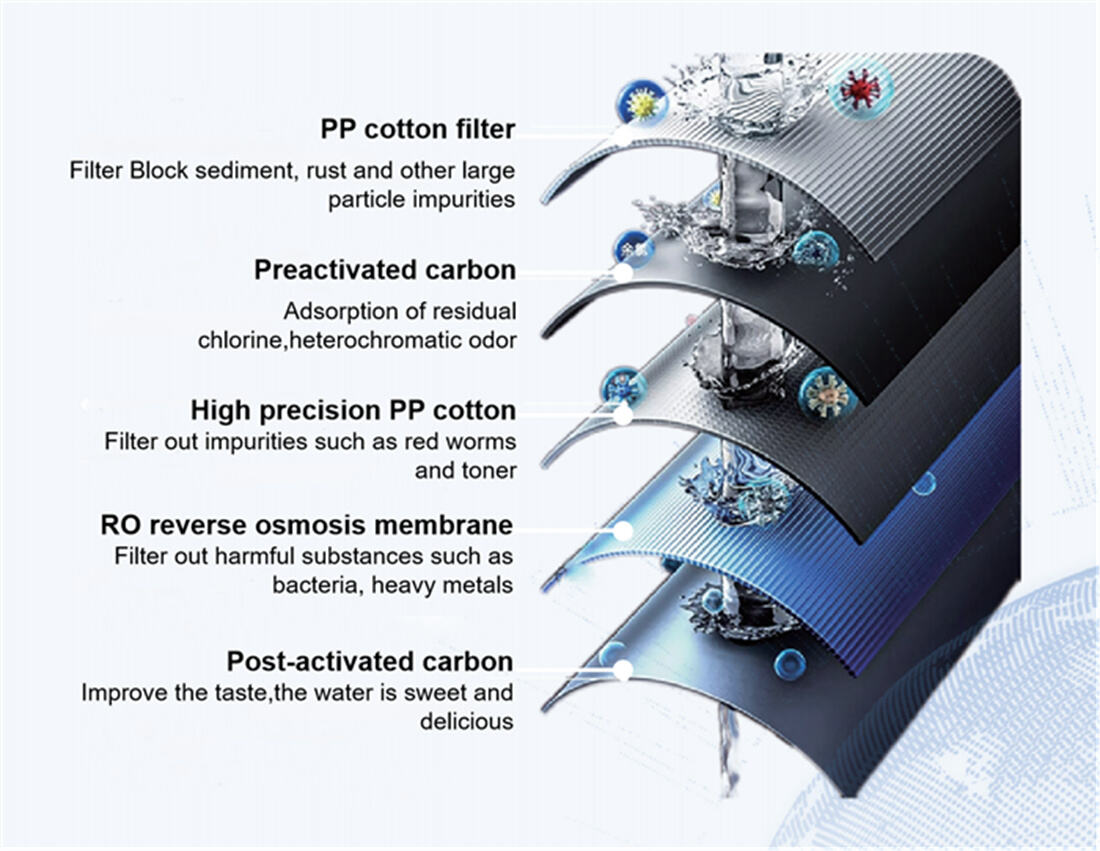

Purification Principle

RO reverse osmosis water purifier is equipped with 5 levels of filtration as standard, namely: PP cotton, granular carbon, compressed carbon, RO reverse osmosis membrane, and post-activated carbon 5 levels; The filter element mainly uses the filter element to remove impurities and harmful substances in the water, and the filter element removes harmful substances such as sediment, rust, bacteria, viruses, heavy metals, and residual chlorine in the water through physical filtration and chemical adsorption, so as to obtain purer water.

Meet The Water Needs Of Multiple People

Continuous water supply capacity to meet the drinking water needs of various types of office scenarios in small, medium and large offices, and multiple people do not wait to receive water.

The 7 Cores Comprehensively Ensure Drinking Water Safety

• The five-stage RO filter element is deeply purified to remove impurities, odors and microorganisms, ensuring pure water quality.

• To meet different drinking water needs, the water temperature is displayed in real time.

• Built-in UV sterilization for continuous sterilization (sterilization rate > 99.9%).

• Automatic power off due to lack of water, overheating protection mechanism, eliminate the hidden danger of dry burning, and make it safer to use.

• Intelligent sleep design reduces daily use costs.

• Automatically remind the filter element to be replaced when the water quality is abnormal.

• The boiling water button needs to be unlocked to prevent children from accidentally touching and burning.

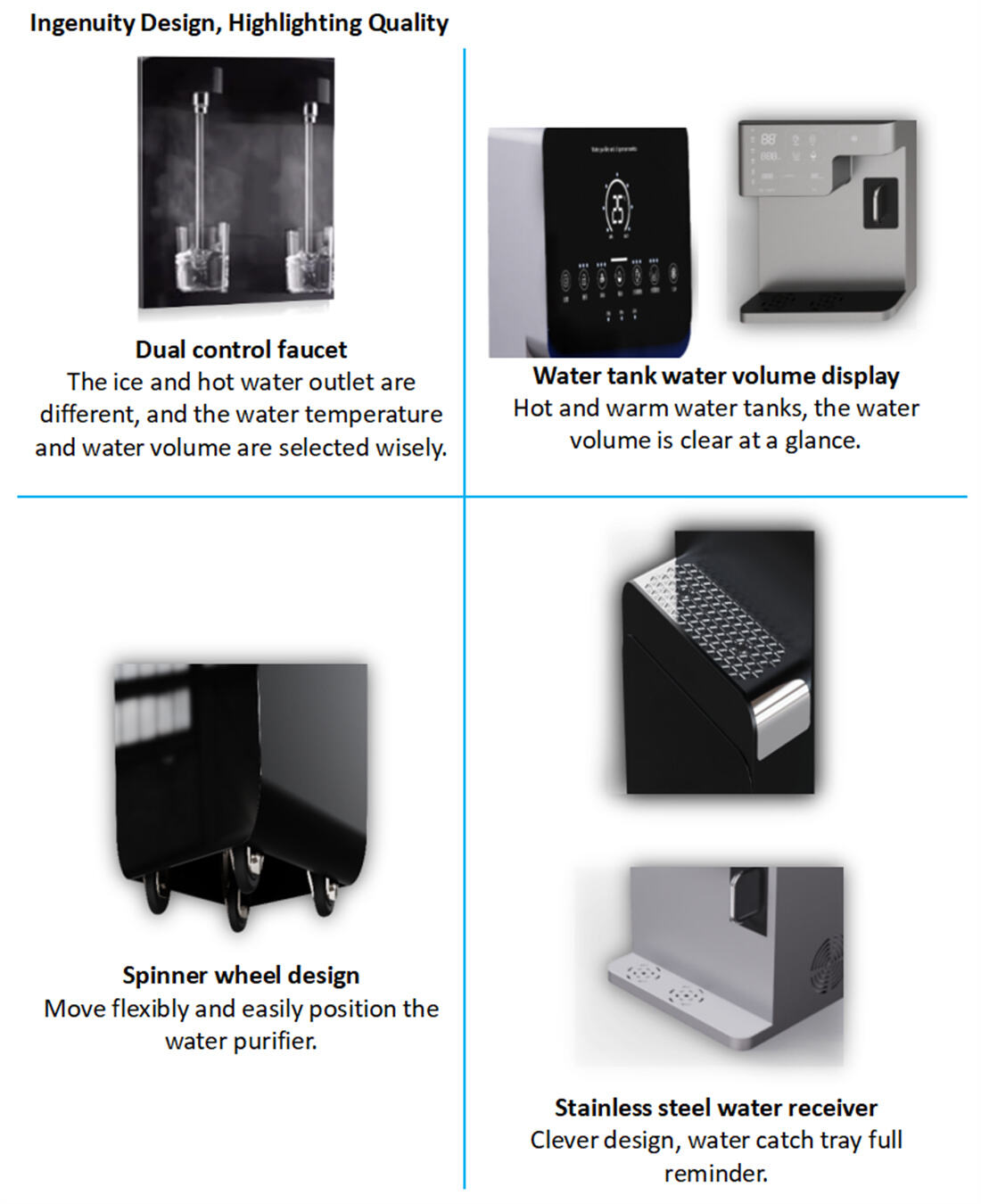

Ingenuity Design, Highlighting Quality

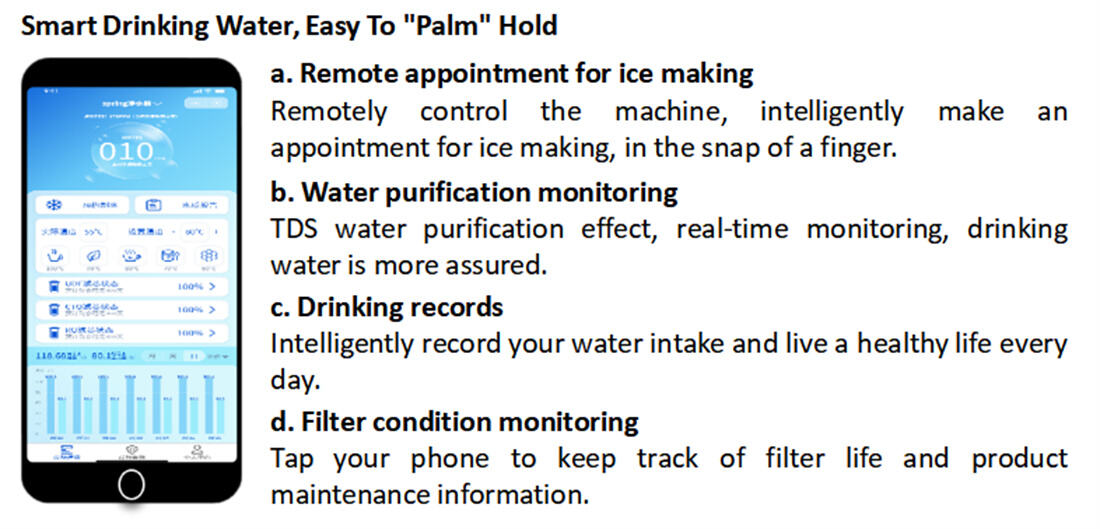

Smart Drinking Water, Easy To "Palm" Hold

Technical Advantages

a. Adopt five-stage reverse osmosis technology, 200G flux, effectively remove impurities in water;

b. Equipped with a 4.0G large-capacity pressure drum to stabilize water supply and meet the water demand during peak hours;

c. Step heater: 15L step heater ensures stable boiling water supply;

d. Stainless steel and ABS material, sturdy and durable, long service life;

e. Double faucet design, one for boiling water and the other for direct use, TDS reaches less than 10 ppm, boiling water flow rate is 10L/h, and water purification flow rate is 30L/h;

f. Touch button water outlet design, equipped with child lock function to ensure safe use;

g. Built-in filtered UV germicidal lamp, which effectively kills bacteria, viruses and other microorganisms in the water to ensure water quality safety;

h. Digital screen display function, real-time display of filter element replacement reminder, TDS value, water temperature and water production status and other information.

Support Customization Options

Minimum Order Quantity

1 unit.

After-sales warranty time

1 year after installation.
