Overview
| Video off-site inspection | Can provide | Water yield | 10T/H |
| Voltage | Custom made | Application scenarios | Industrial effluent |
| Mechanical test report | Can provide | Defects liability period | 1 year |
| Core components | Pre-treatment equipment, ultrafiltration membrane equipment, reverse osmosis membrane equipment | Country of origin | Anhui China |
| Product name | Online water reuse equipment for membranes | Function | The preparation of ultrapure water has a reuse rate of 75%-85%. |
| Colour | Customizable | Operate | Automatically execute |
| Control | Electrical automatic control (Siemens PLC) | Brand | SECCO |
| Minimum order quantity | 1 unit | Core component warranty | 1 year |
| Provide after-sales service | Drawings, videos, installation and operation and maintenance manuals, on-site services | ||
Product Specifications
| Product name | Model | Water quality of production | Filter tank material | Pipeline material |
| Online water reuse equipment for membranes | ANJ-MRE-10 | Conductivity ≤ 10us/cm | (FRP)/stainless steel | UPVC/304 stainless steel |
| Conductivity ≤ 5us/cm | (FRP)/stainless steel | UPVC/304 stainless steel | ||
| Conductivity ≤ 1us/cmresistivity ≥1Ω`m | (FRP)/stainless steel | UPVC/304 stainless steel | ||
| Conductivity ≤ 0.067us/cmresistivity is greater than 15Ω`m | (FRP)/stainless steel | UPVC/304 stainless steel | ||
| Conductivity ≤ 0.055us/cmresistivity ≥ 18.2Ω`m | (FRP)/stainless steel | UPVC/304 stainless steel |

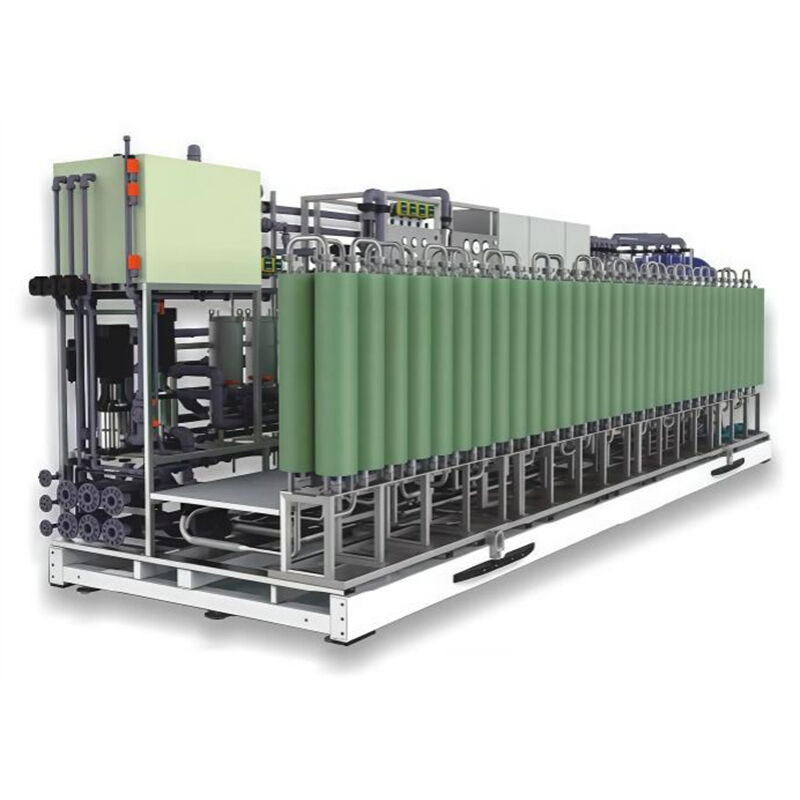

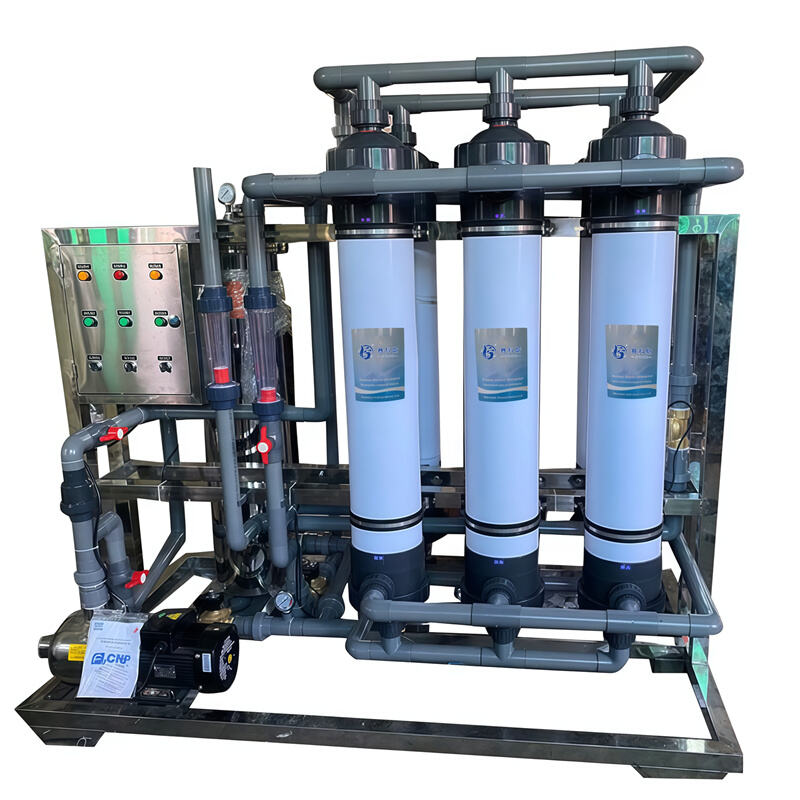

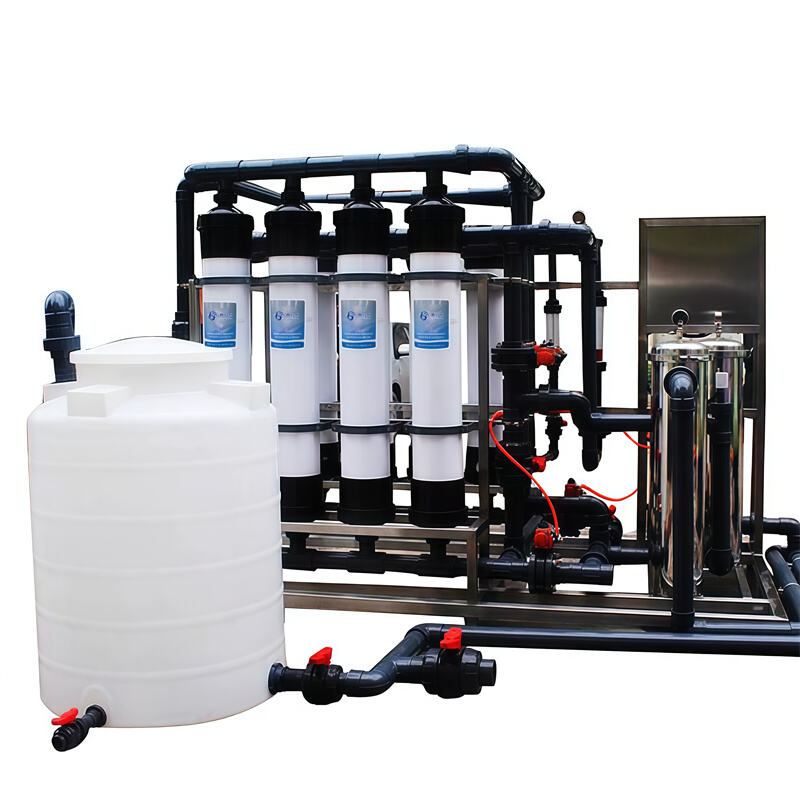

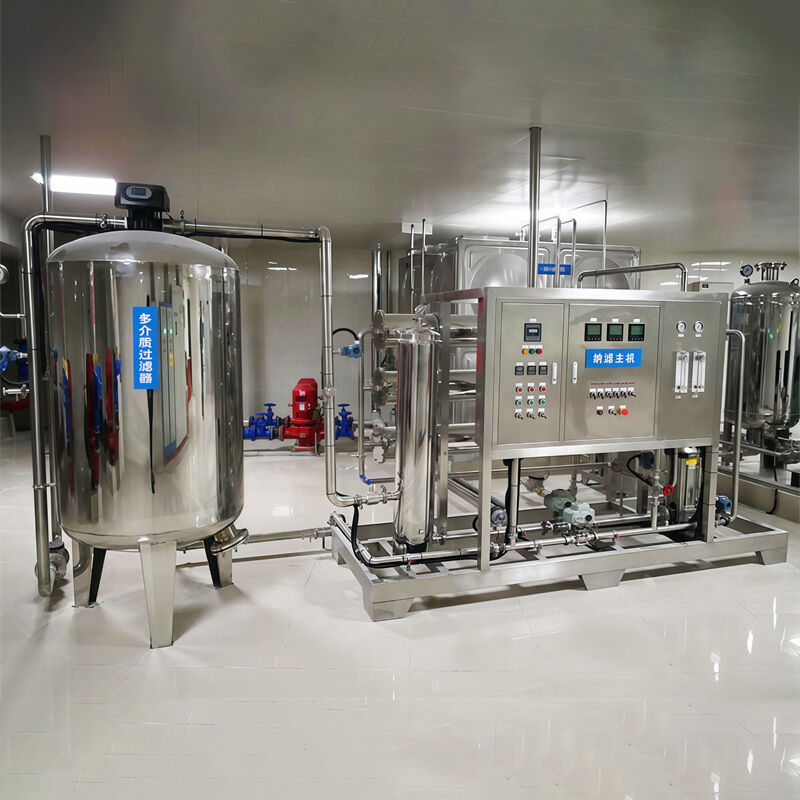

Equipment Appearance Diagram

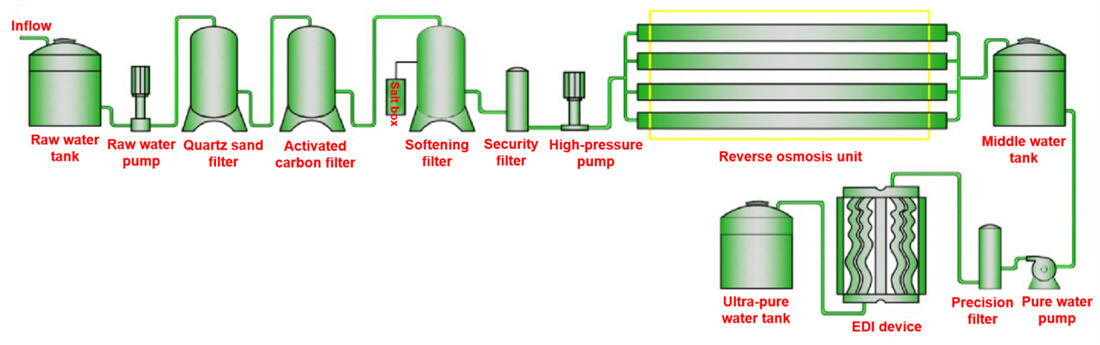

The equipment takes the reverse osmosis membrane as the core and integrates pretreatment and post-treatment modules. It can process industrial drainage online and directly produce reused water. The quality of water produced meets the standards of circulating cooling, cleaning and other process water, realizing local recovery and real-time reuse of wastewater.
Operating Conditions
Water supply pressure: 0.2Mpa~0.4Mpa;
Temperature ：5~40℃;
Humidity: <85%RH.
Production Cycle
| Quantity | 1 | >1 |
| Time (days) | 100 | To be determined |
Support For Customization Options
| Option | Minimum order quantity | Customization costs |
| Nameplate and brand name | ||
| Brushing or polishing | 1 | - |
| Material quality | ||
| Customized | 1 | - |
| Water intake quality | ||
| Customized | 1 | - |
| Water quality | ||
| Local Standards | 1 | - |
| Percent recovery | ||
| Customized | 1 | - |
| Water yield | ||
| 5T/H | 1 | - |
| 10T/H | 1 | - |
| 50T/H | 1 | - |
| Customized | 1 | - |
| Power supply | ||
| Customized | 1 | - |
| Type of power supply | ||
| Customized | 1 | - |
Packaging Dimensions
| Product name | Model | Water quality of production | Packaging size (m) (L×B×H) | Weight (T) | Minimum order quantity |
| Online water reuse equipment for membranes | ANJ-MRE-10 | Conductivity ≤ 10us/cm | 7×2.5×2.5 | 20 | 1 |
| Conductivity ≤ 5us/cm | 12×2.5×2.5 | 30 | 1 | ||
| Conductivity ≤ 1us/cmresistivity is greater than 1Ω`m | 15×3×2.5 | 35 | 1 | ||
| Conductivity ≤ 0.067us/cmresistivity ≥ 15Ω`m | 20×3×2.5 | 40 | 1 | ||
| Conductivity ≤ 0.055us/cmresistivity ≥18.2Ω`m | 23×3×2.5 | 45 | 1 |

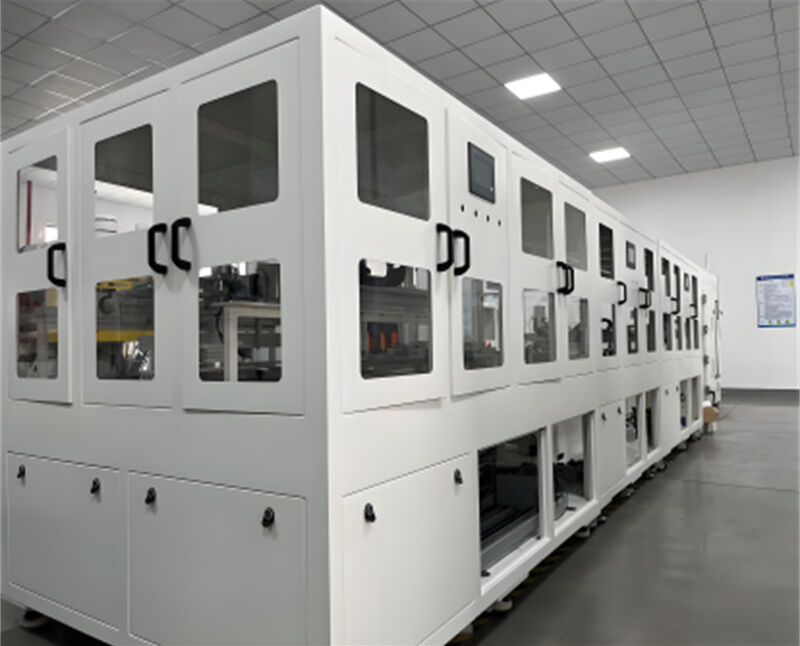

Application Scenarios
-
Printing and dyeing industry
Dye vat wastewater reuse, reduce fresh water consumption.
-
Automotive manufacturing industry
The circulating water in the painting workshop of the automobile assembly plant meets the water quality requirements for cleaning.
-
Electronic cleaning industry
Clean wastewater reuse in electronics factory to save water cost.

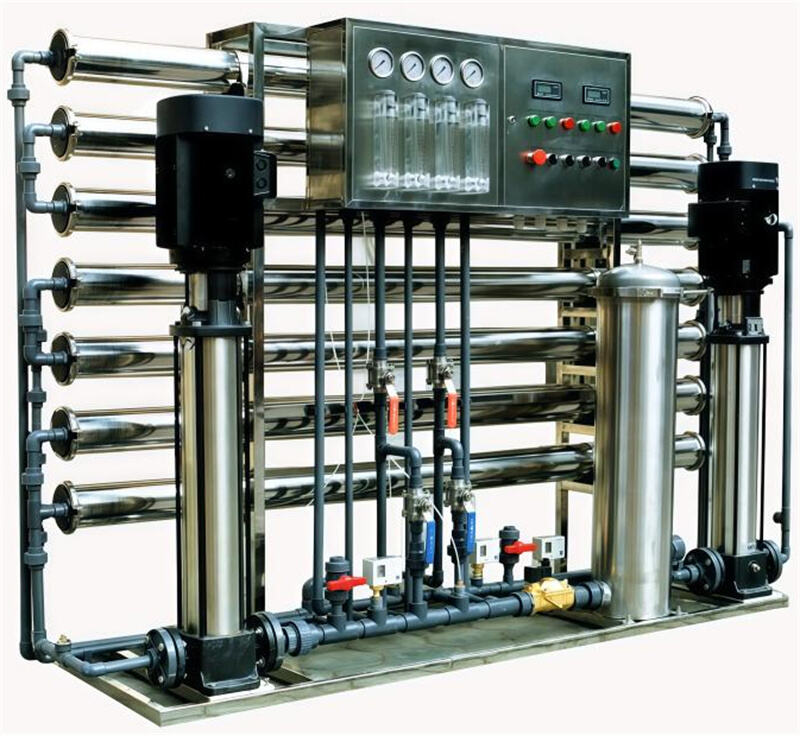

Application Cases

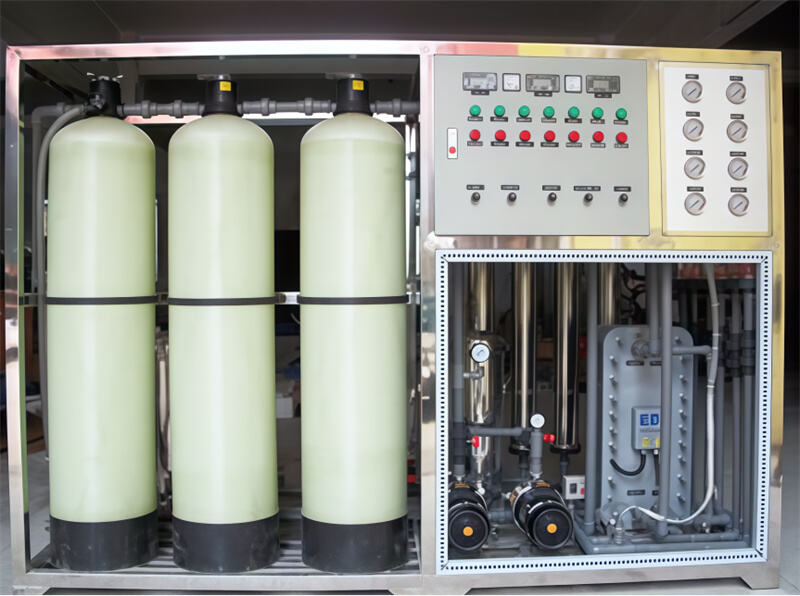

a. The pure water production volume of a certain ultrasonic display company: 70 tons/hour (secondary RO+EDI)
b. The pure water production volume of a certain new materials company: 30 tons/hour (secondary RO+EDI)
Product Advantages
High efficiency interception
The reverse osmosis membrane has a retention accuracy of 0.0001 micron, which can effectively remove salt, organic matter and other impurities, and the reuse rate is 75%-85%.
Real-time reuse
The wastewater can be processed online in real time and recycled water can be produced to realize local recycling and improve the efficiency of water resource utilization.
Extend membrane service life
Equipped with online monitoring and automatic flushing system, the membrane life can be extended by more than 30% and the replacement cost can be reduced.
High level of equipment integration
The compact design of the equipment can be directly embedded in the production line, reducing the cost of pipeline laying and saving space.
Standardization And Customization Services
We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analytics and artificial intelligence technologies, we dedicate ourselves to smart manufacturing to deliver outstanding products and services. Our offerings include a range of rigorously tested, high-performance standardized products tailored to diverse industry needs. We also provide customized solutions, with our professional design team creating tailored solutions to meet unique requirements. Through comprehensive services, we craft high-quality mechanical products and system solutions with meticulous craftsmanship.
Minimum Order Quantity
1 unit.
After-sales Warranty Time
One year after installation.
