Overview
| Video Off-site Inspection | Can provide | Installed Power | Peak power: 156 W |
| Voltage | 220V AC, 50Hz | Warranty Period | 1 year |
| Inspection Report | Can provide | Weight | 10.5 KG |
| Core Components | Photometric measurement unit, digestion colorimetric unit, ten-way valve for sample injection | Main Material | Carbon steel, IP53 rating |
| Country of Origin | Anhui, China | Function | Water quality monitoring device |
| Product Name | Water Quality Online Monitoring Analyzer | Type | On the ground |
| Product Color | Customizable | Control | Electrical automatic control |
| Operation | Automatically execute | Minimum Order Quantity | 1 unit |
| Brand | SECCO | Core Component Warranty | 1 year |
| Provide After-sales Service | Drawings, videos, installation and operation and maintenance manuals, on-site services | ||
Product Specifications
| Testing Parameters | Range (mg/L) | Repeatability | Accuracy | Lower limit of quantification(mg/L) |
| CODCr (SECCO-N-2010) | 0-200 | ±5% | ±5% | 15 |
| CODMn (SECCO-N-2050) | 0-10 | ±5% | ±5% | 0.5 |
| TN (SECCO-N-2030) | 0-20 | ±2% | ±10% | 0.3 |
| TP (SECCO-N-2020) | 0-4 | ±2% | ±5% | 0.02 |
| NH3-N (SECCO-N-2040) | 0-10 | ±2% | ±5% | 0.15 |
| Content | Parameter |
| Equipment Size (L×B×H) (mm) | 300×270×700 |
| Weight of Equipment (kg) | 10.5 |
| Installed Power (W) | Peak power: 156 |
| Power Supply | AC 220V |
| Ambient Temperature (℃) | 5-40 |
| Communication Mode | 4-20 mA, RS485 |
| Ingress Protection | IP53 |
| Communication Protocol | 3rd Generation Partnership Project Technical Specification 24.212(3GPP TS 24.212) |
Equipment Appearance Diagram

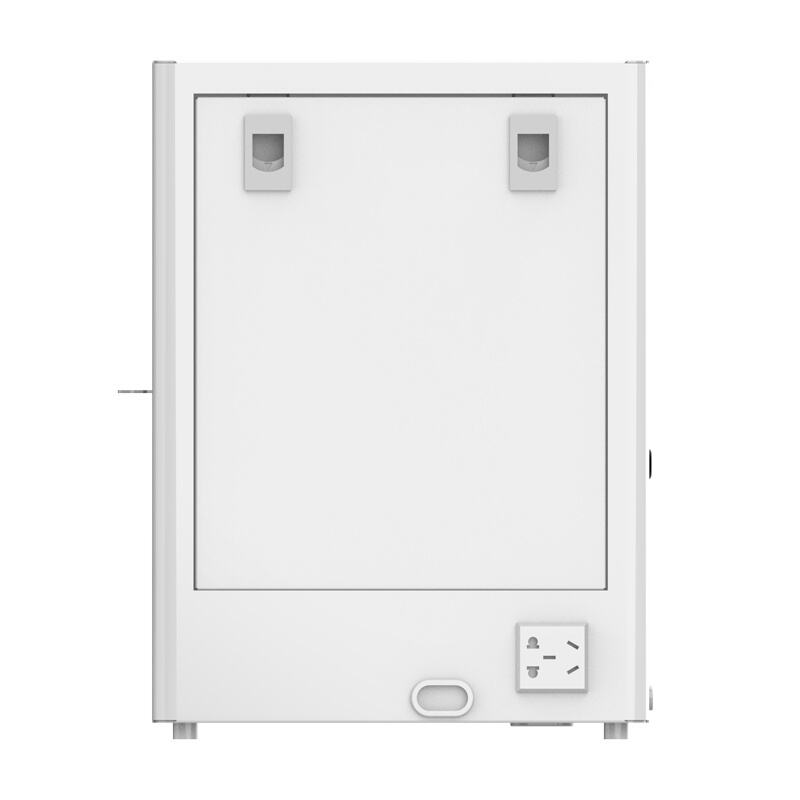

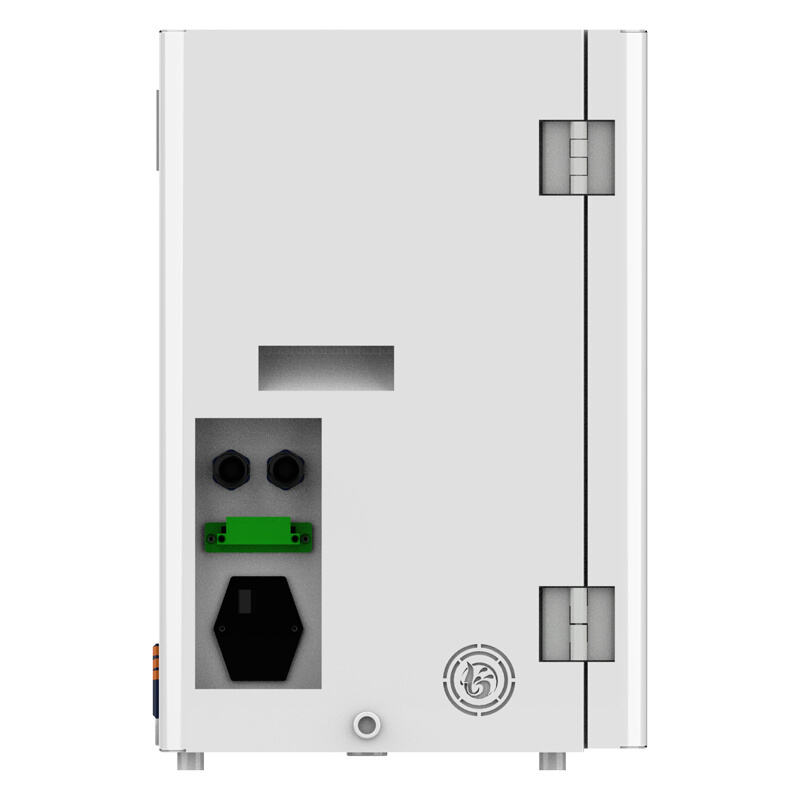

CODCr (SECCO-N-2010)

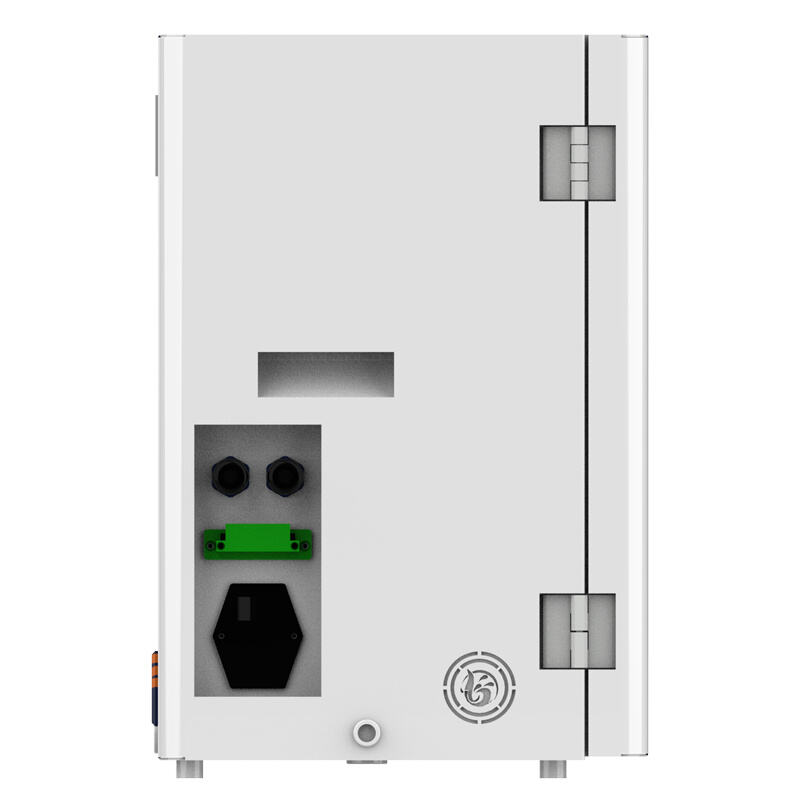

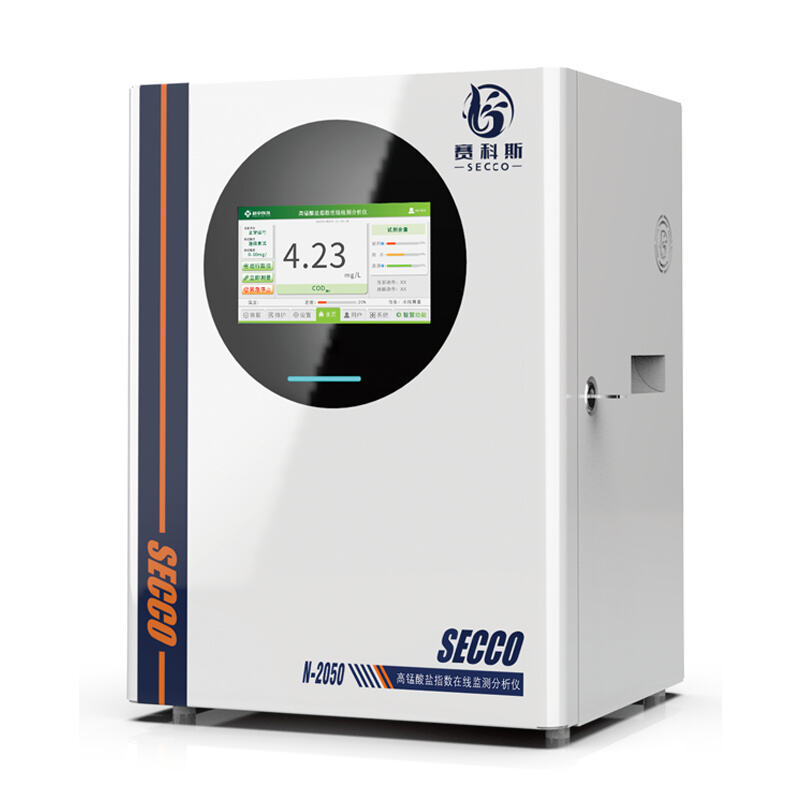

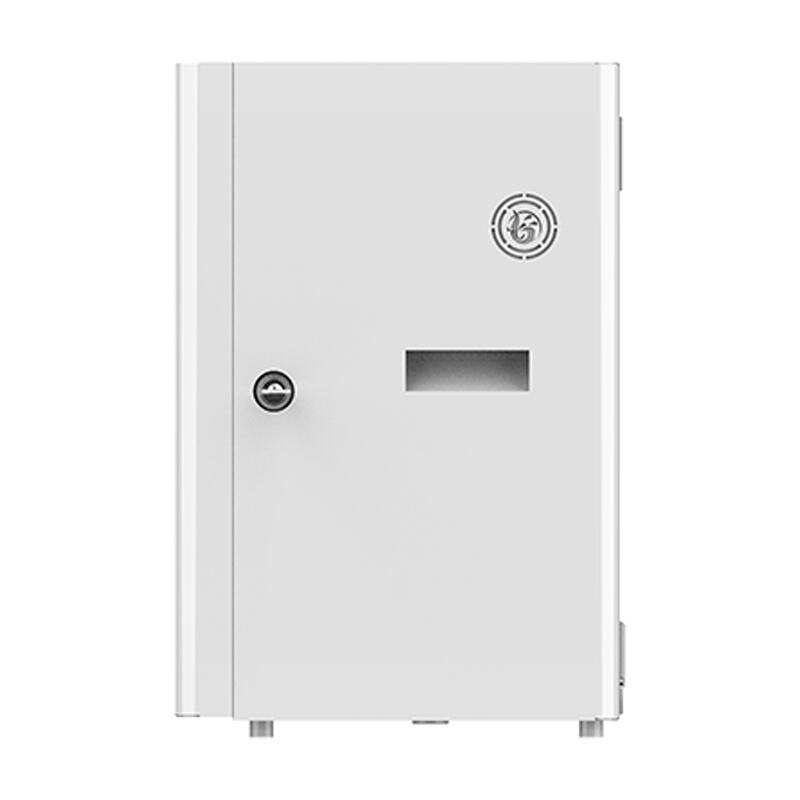

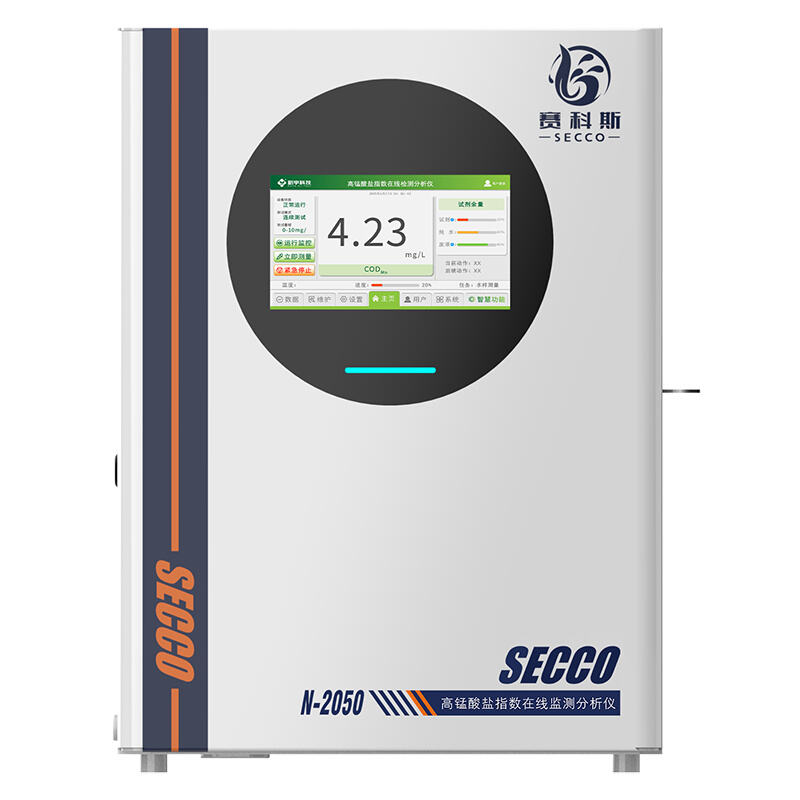

CODMn (SECCO-N-2050)

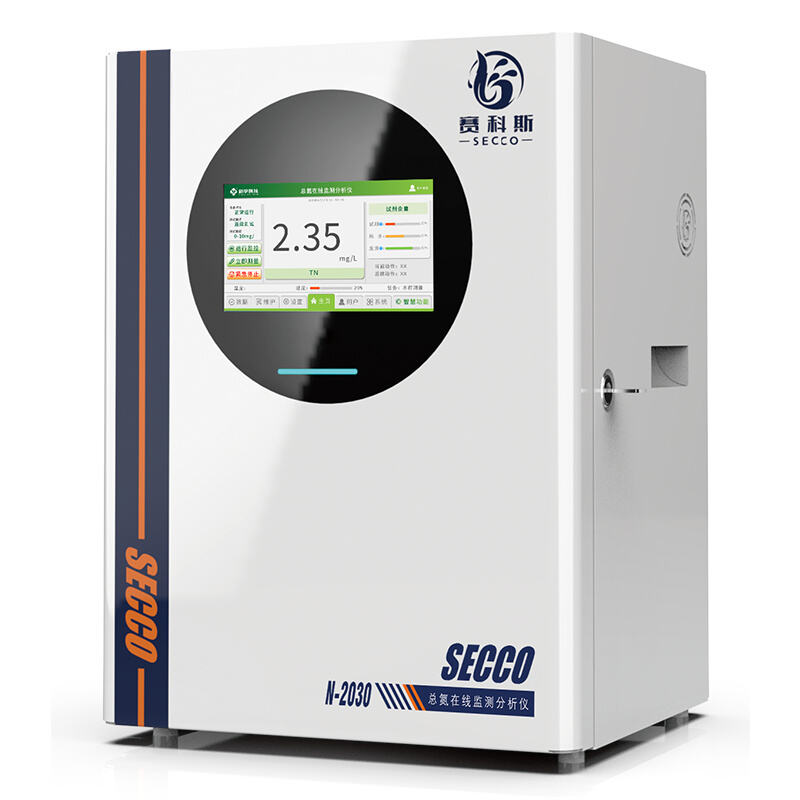

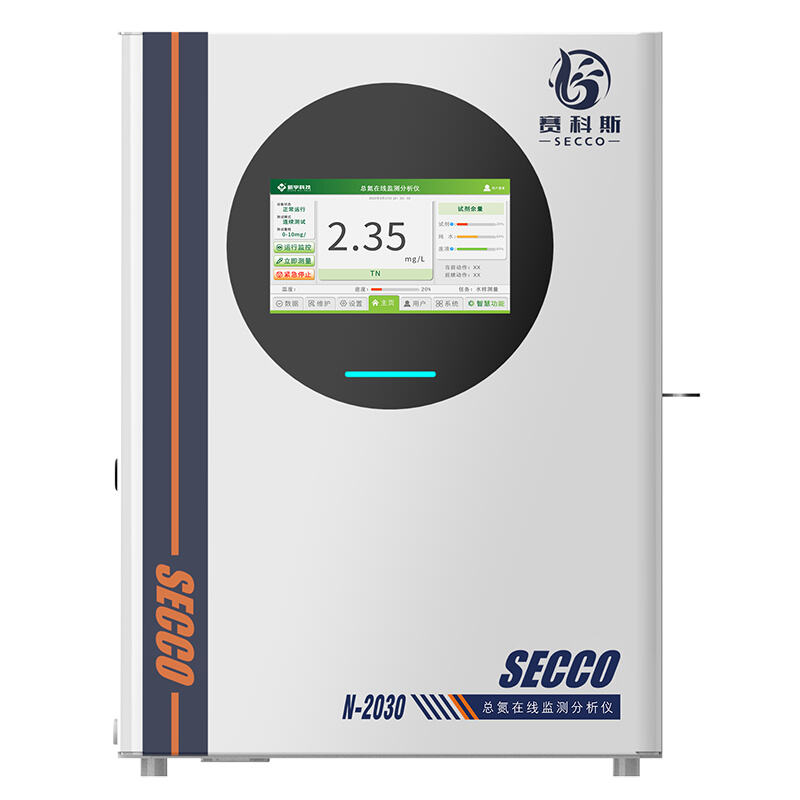

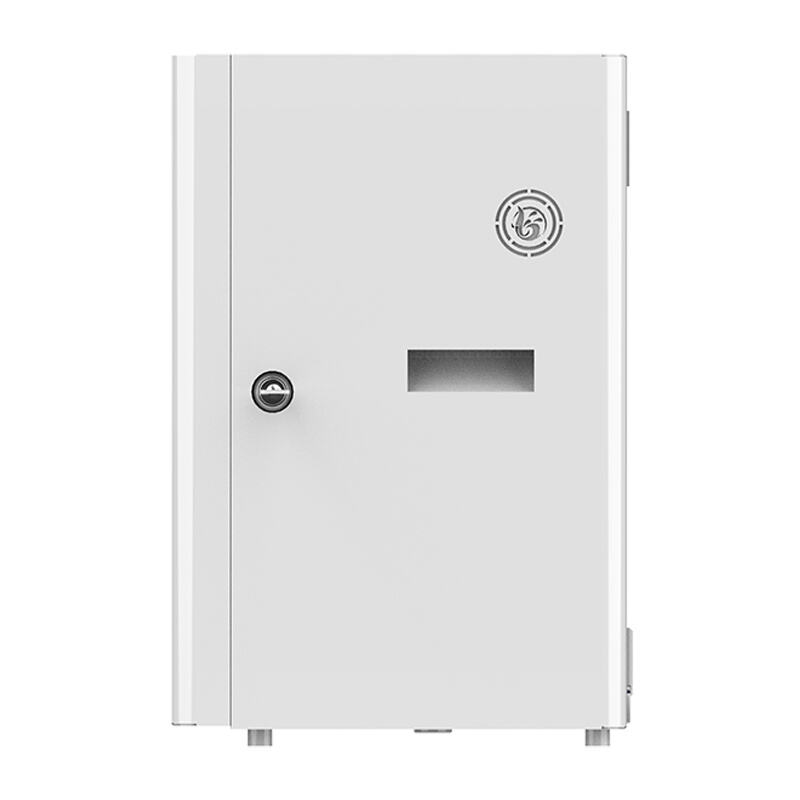

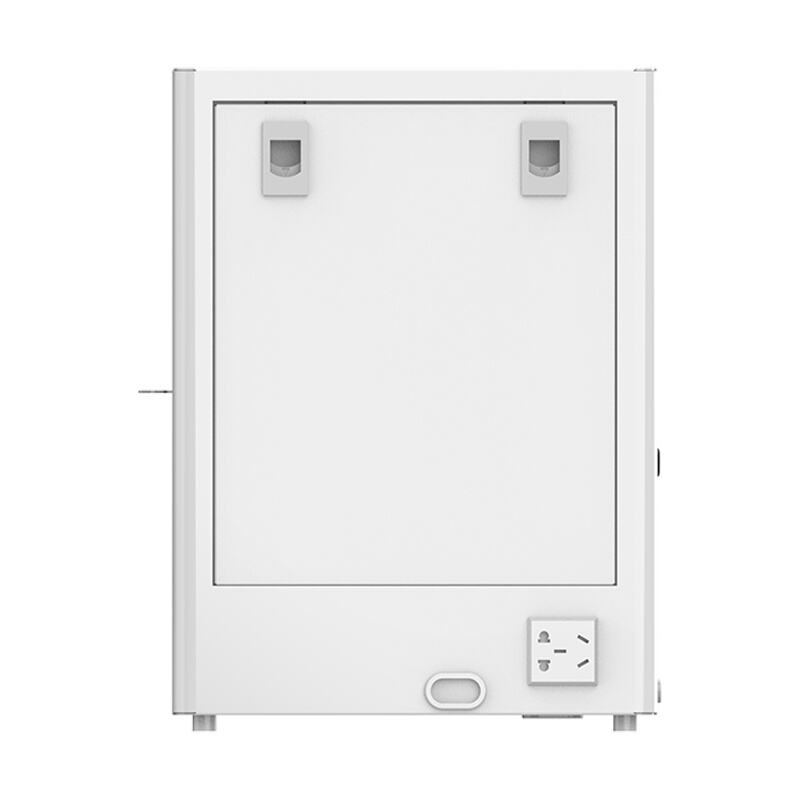

TN (SECCO-N-2030)

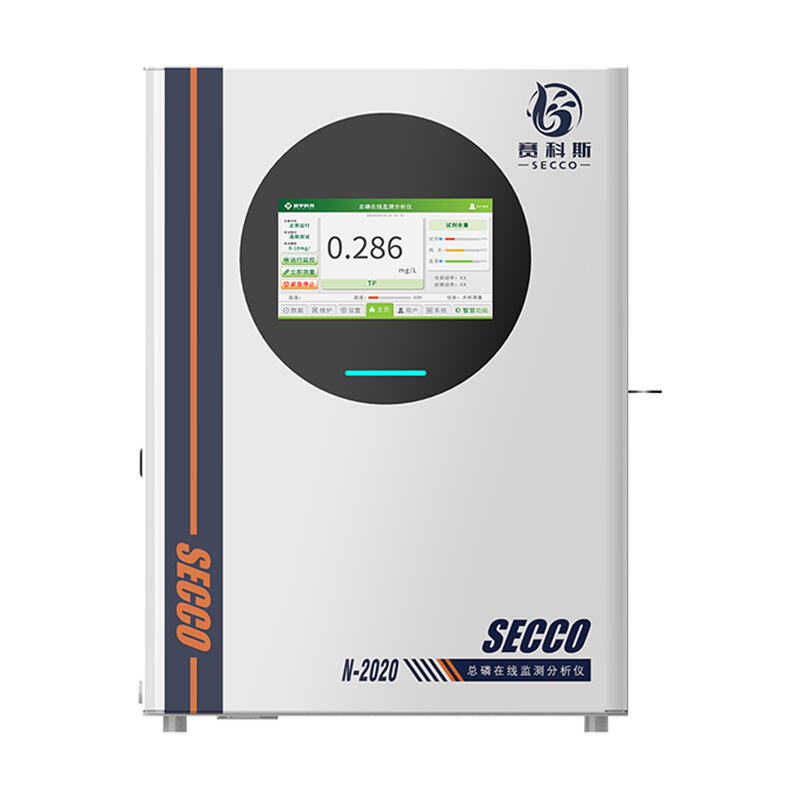

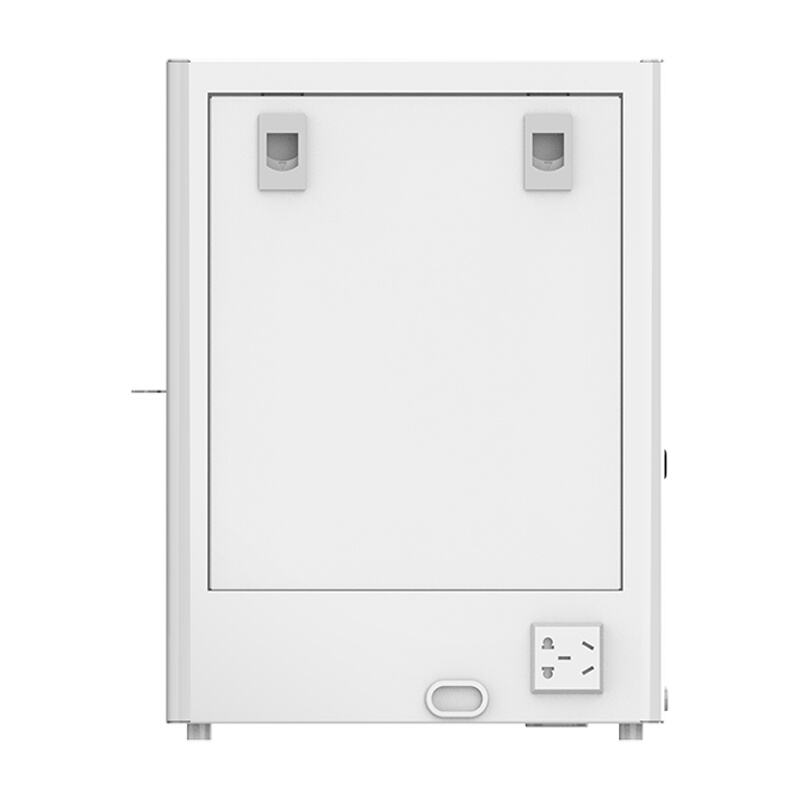

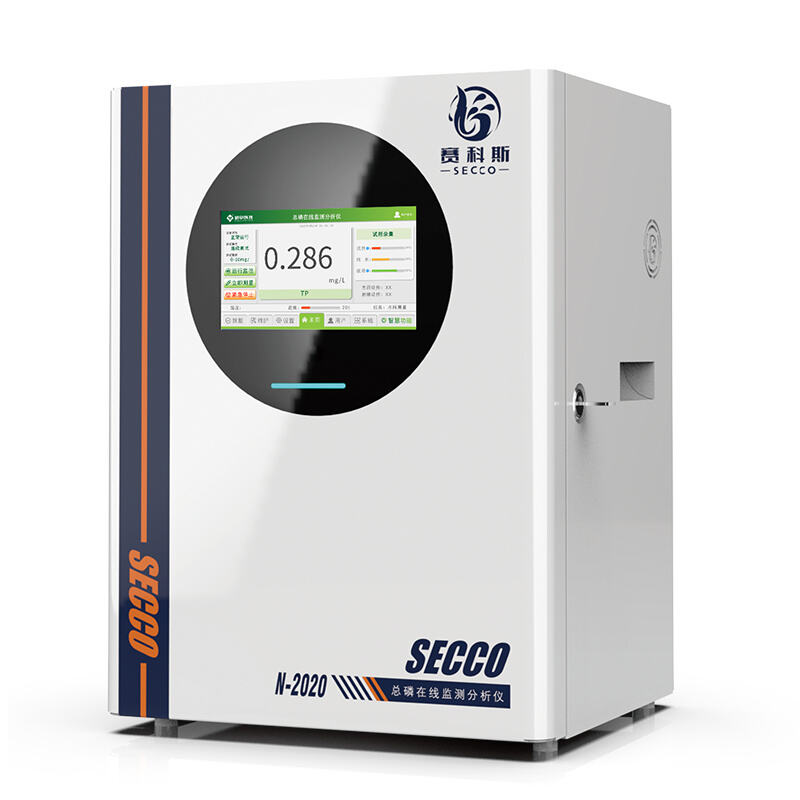

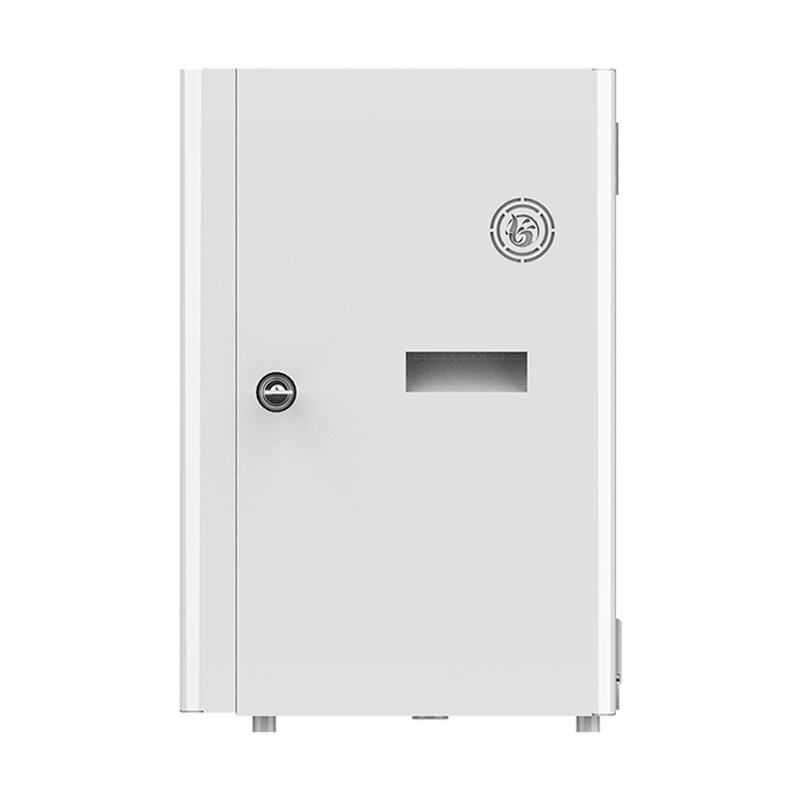

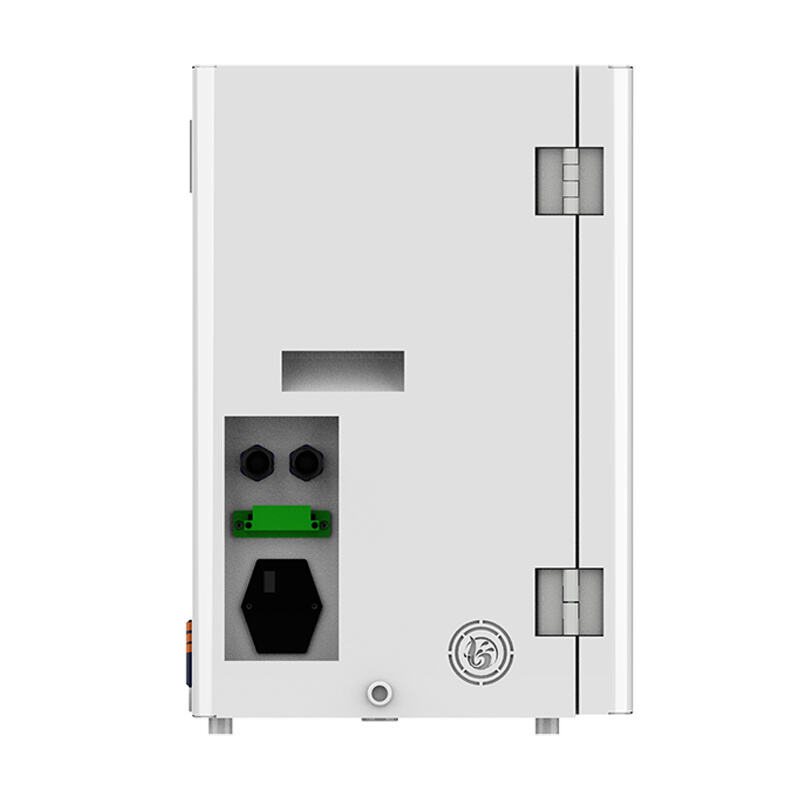

TP (SECCO-N-2020)

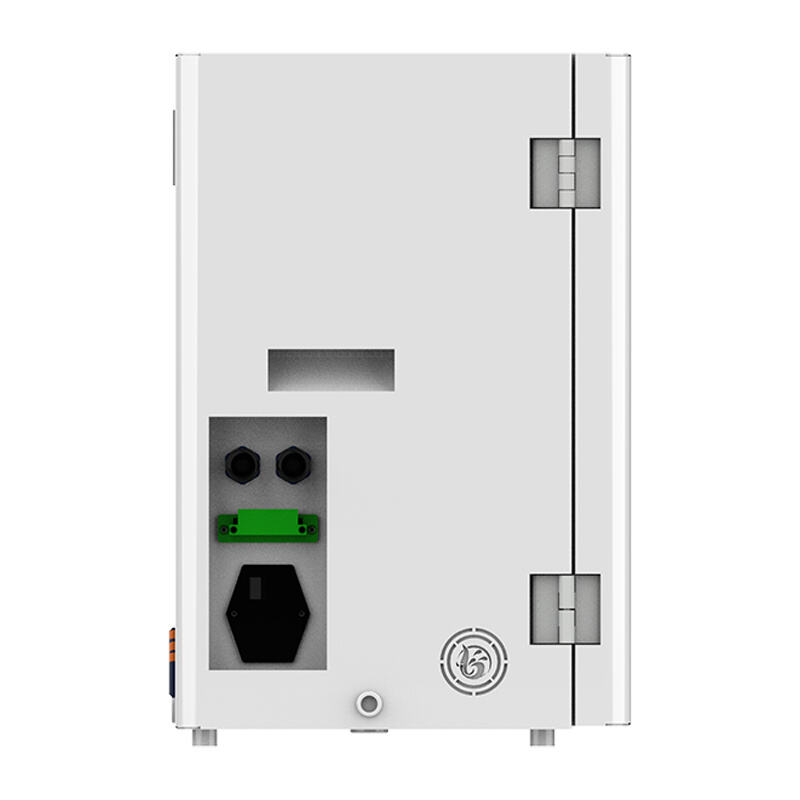

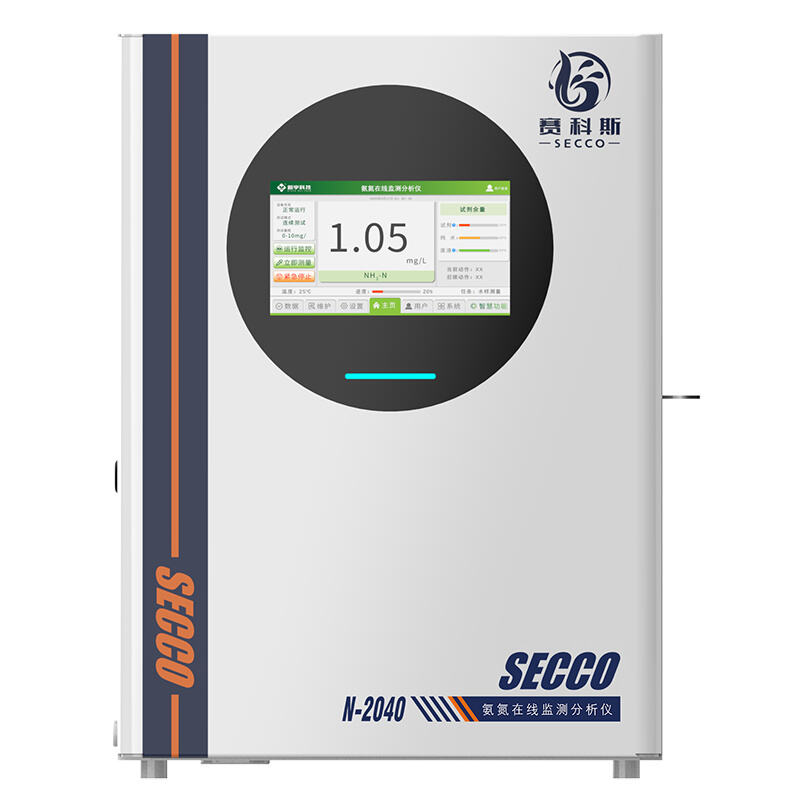

NH3-N (SECCO-N-2040)
The SECCO-N series water quality online monitoring analyzer is an online monitoring system developed by SECCO based on national standards, designed for continuous sampling, testing, and transmission of water samples. The primary monitored parameters include: potassium permanganate index, chemical oxygen demand (COD), ammonia nitrogen (NH3-N), total phosphorus (TP), and total nitrogen (TN). This series of products integrates a multi-port valve sampling module, high-precision metering module, high-pressure digestion and colorimetry module, reagent refrigeration module, and more. It can be combined with flow meters, exceedance sampling units, and other components to form a multifunctional automatic control system, enabling online analysis and early warning of water quality for wastewater discharged by polluting enterprises, surface water in river basin grids, groundwater, and more, meeting the regulatory requirements of relevant departments.
Product Composition

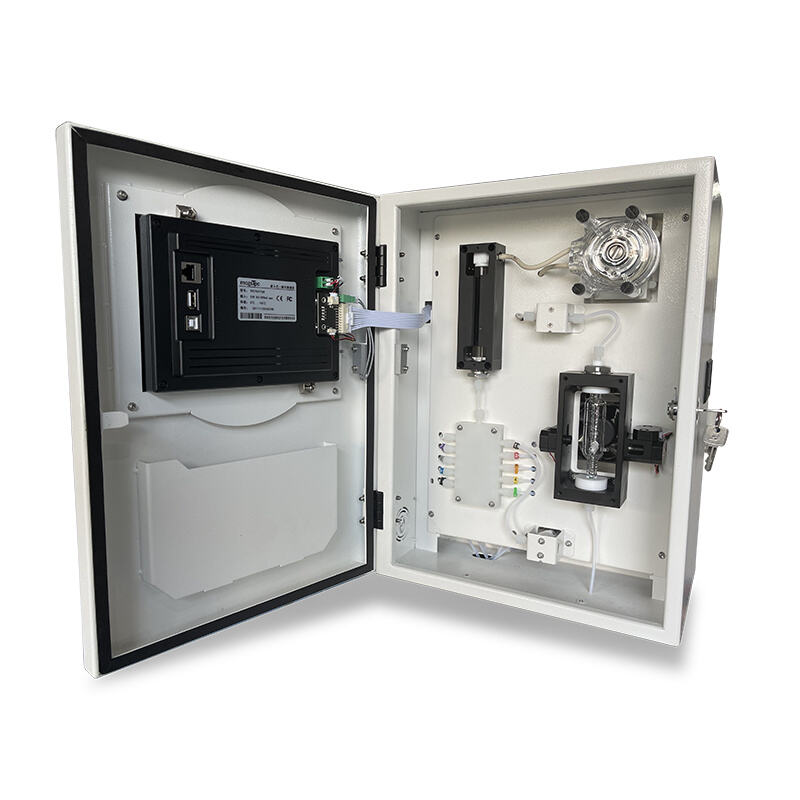

The whole system is mainly composed of photometric measurement unit, digestion colorimetric unit, ten-way valve for sample injection.
Technical Principle
COD: Potassium dichromate digestion-spectrophotometric method;
NH3-N: Salicylic acid colorimetric method;
TP: Phosphomolybdenum blue spectrophotometric method;
TN: Potassium persulfate digestion-resorcinol colorimetric method;
Potassium permanganate index: Potassium permanganate titration colorimetric method.
Production Cycle
1-5 units: 20 days
6-20 units: 45 days
21 units or more: To be determined
Support For Customization Options
| Option | Minimum Order | Customization Costs |
| Custom Nameplates | 1 | - |
| Custom Made Logo | 1 | - |
| Software System Identification | 1 | - |
Packaging Size
Analyzer: Carton packaging, 360×330×480(L×B×H)(mm)
Reagent compartment: Carton packaging, 340×340×300(L×B×H)(mm)
Application Scenarios
For use in station buildings, for monitoring surface water and water quality at pollution sources.
Application Cases
Xiatang Reservoir, a backup water source, has installed front-end monitoring equipment (online water quality analyzers), a regulatory system platform, and a data middleware platform to improve water quality stability and reduce potential water pollution risks.
The regulatory platform detected two water quality anomalies, ten rural sewage treatment facility malfunctions, five illegal intrusions into the water source protection area, and eight cases of illegal fishing, thereby improving the reservoir's water safety management.
A certain integrated Chinese and Western medicine hospital wastewater treatment plant with a treatment capacity of 500 m³/d uses a buried AAO process. An online water quality analyzer is used for continuous sampling, testing, and transmission of the water samples to be tested for online monitoring. Two instances of abnormal water quality in the equipment's effluent were discovered.
Product Advantages
a. Incorporates a Three-stage Precision Photoelectric Metrology Unit: Extremely high measurement accuracy, far exceeding conventional standards.
b. Built-in High-precision Temperature Compensation Algorithm and Ambient Light Interference Elimination Function: Ensure stable and reliable measurement performance throughout the entire life cycle of the equipment.
c. Equipped with a High-reliability Reagent Selection Valve and Digestion Vial Assembly: Low system failure rate, effectively reducing maintenance frequency and workload.
d. Supports On-site Editable Customized Maintenance Procedures: Significantly improve operational efficiency and adaptability.
e. Features a User-friendly Touch Graphical Interface: Intuitive and easy to use, allowing personnel to quickly master its operation.
f. Incorporates an Automatic Electrically Controlled Safety Door Mechanism: Comprehensive protection of the safety and standardization of the operation process.
Standardized and Customized Services
We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analysis and artificial intelligence technology, we are committed to intelligent manufacturing and providing customers with excellent products and services. Our offerings include a range of high-performance standardized products that have undergone rigorous testing to meet diverse industry needs. We also offer custom solutions, where our dedicated design team creates tailored solutions for unique requirements. Through comprehensive services, we create high-quality mechanical products and system solutions with meticulous craftsmanship.
Minimum Order Quantity
1 unit.
After-sales Warranty Time
One year after installation.
