Overview
| Video off-site inspection | Can provide | Power supply | AC220V or PV DC24V |
| Power consumption | The whole machine < 330W | Inspection report | Can provide |
| Device Size (L×B×H) | 400×392.3×812(mm) | Warranty coverage | 1 year |
| Core components | Peristaltic pumps, flow sensors | Weight | 30 kg |
| Country of origin | Anhui, China | Main material | Carbon steel, IP53 grade |
| Product Name | Water quality automatic sampler | Function | Automatic sampling, can be used alone, can be used in conjunction with analyzers |
| Product color | Customize | Type | On the water |
| Operate | Automated execution | Control | Electrical automatic control |
| Brand | SECCO | Minimum order quantity | 1 unit |
| Core component warranty | 1 year | Provide after-sales service | Drawings, videos, installation and operation manuals, on-site service |
Product Specifications
| content | Parameter |

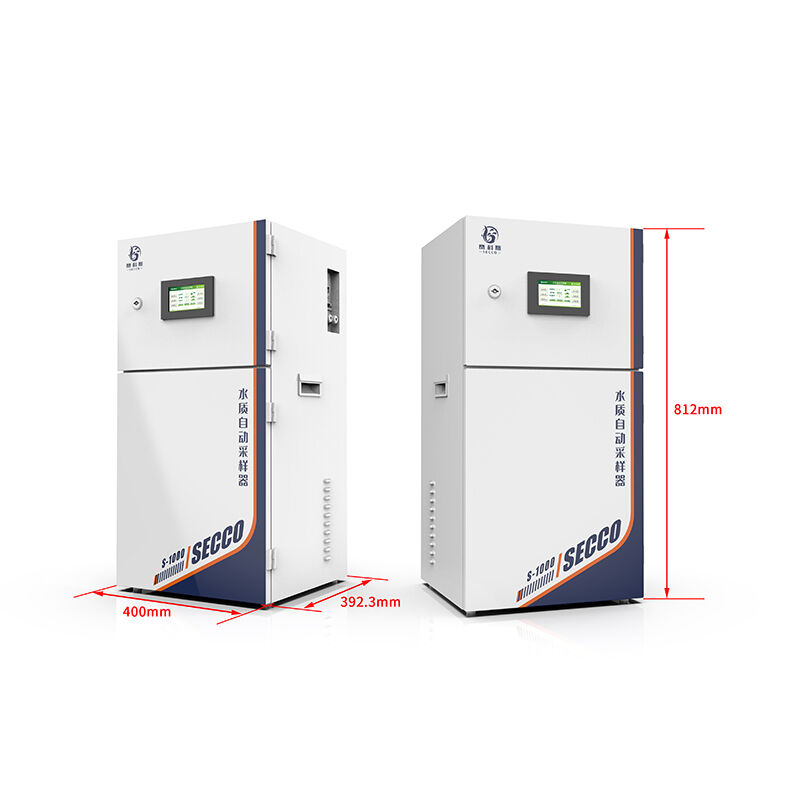

| Device size (L×B×H) (mm) | 400×392.3×812 |
| Device weight (kg) | 30 |
| Environmental conditions | -5℃~55℃ |
| Waterproof rating | IP53 |
| Communication mode | RS485 |
| Communication protocol | 3rd Generation Partnership Project Technical Specification 24.212 (3GPP TS 24.212) |
| Keep the sample | 9 |
| Sample volume | 500mL |
| Sampling interval time | 1~9999 minutes |
| Temperature control | The minimum refrigeration is 4°C, and the accuracy is 1°C |

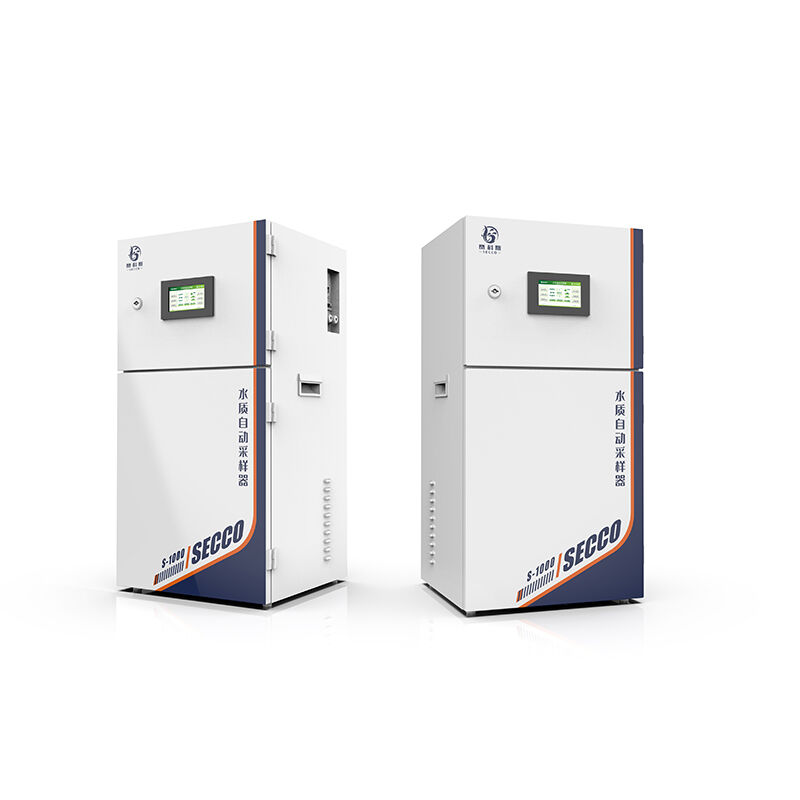

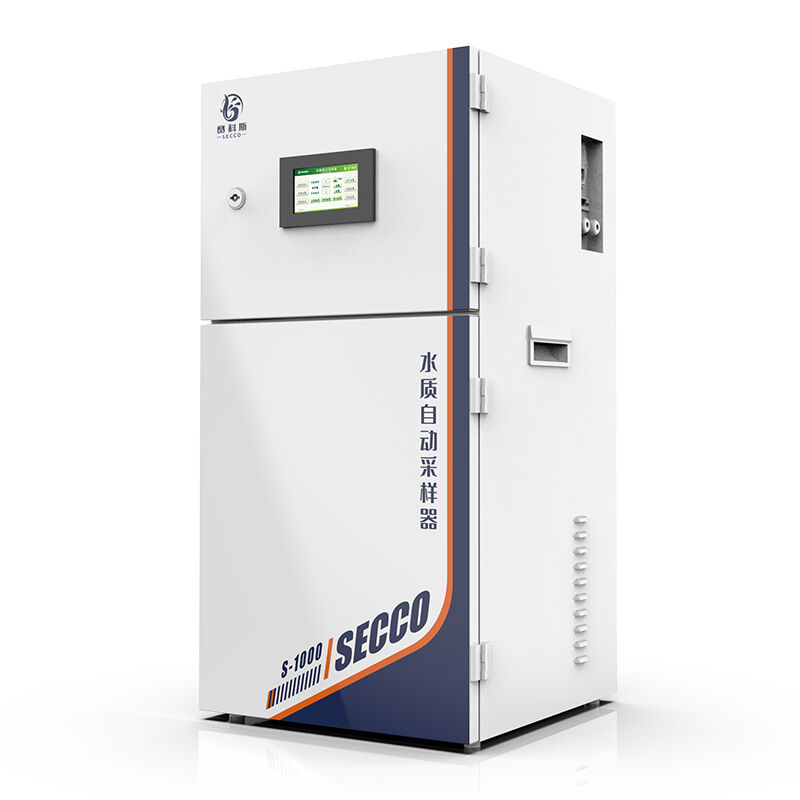

Equipment Appearance Diagram
SECCO-S-1000 Water quality automatic sampler is an instrument developed by SECCO for online automatic sampling of dry pollution sources, surface water stations, and shore micro stations, and is suitable for various environmental monitoring fields such as dry municipal water quality, lake water, river water and groundwater.
The product uses a special peristaltic pump for sewage to draw water, with a large pipe diameter and fast flow rate, which can effectively avoid pipeline blockage. In terms of function, users can set the sampling method, sampling time interval, sampling amount and storage location; After the flow sensor is connected, it can complete the sewage metering and sampling according to the flow rate. It can be linked with online monitoring instruments to achieve over-standard sample retention. The product has the characteristics of strong adaptability, simple integration and convenient operation.

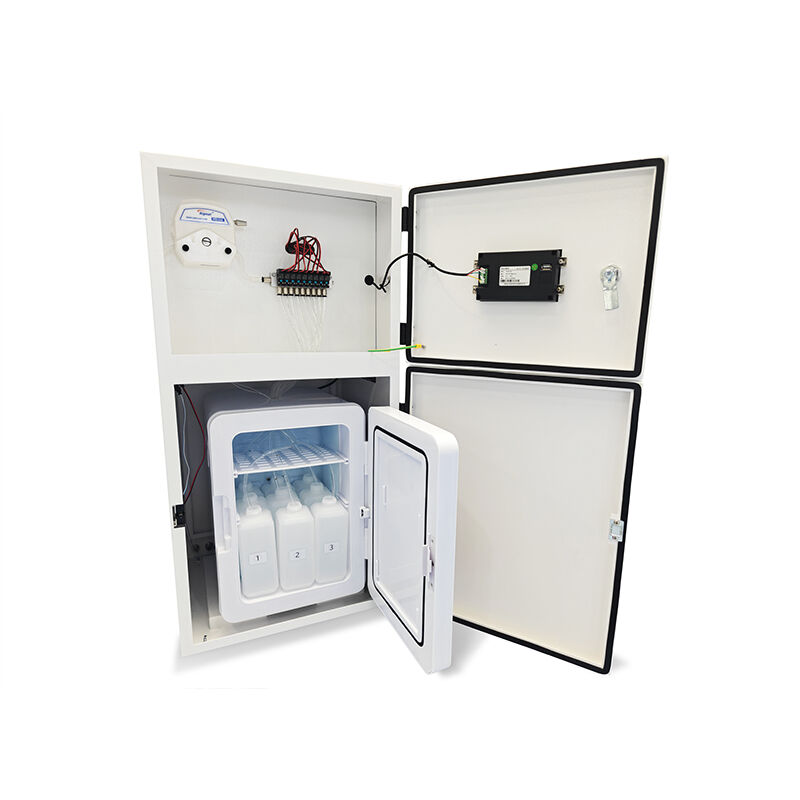

Product Composition
The whole system is mainly composed of peristaltic pump and flow sensor.
Technical Principle
Sequential automatic control sampling.
Production Cycle
1 unit: 15 days
2-5 units: 30 days
6-20 units: 45 days
More than 21 units: To be determined
Support Customization Options
| Option | Minimum order quantity | Customization cost |
| Custom nameplates | 1 | - |
| Customized logo | 1 | - |
| Software system identification | 1 | - |
Packing Size
Carton packing (L×B×H): 450×450×850 (mm).
Application Scenarios
Scenarios where automatic sampling is required, such as pollution sources, surface water stations, and shore-based micro stations.
Product Advantages
a. Clean interface with clear navigation
The interactive interface is easy to operate, and the interface-oriented wall is easy to use.
b. Valve control, one by one
Enhance the fault tolerance of pipeline faults to facilitate troubleshooting and solving faults.
c. Quick plug and install, instantaneous waterway
The design of quick insertion of import and export is fully loaded and convenient.
d. Visualize the derivatives, efficient and worry-free
You can view the data and support one-click export of data.
e. Intelligent preservation, no loss of samples
The storage temperature can be displayed and set, with a minimum refrigeration of 4°C and an accuracy of 1°C.
f. Automatic cleaning to avoid contamination
Automatic pipeline cleaning can be performed to avoid sample cross-contamination.
g. Multimodal triggering, on-demand activation
Instant start, timed start, switch amount trigger start, serial port trigger start, etc., to meet user needs.
h. Multi-port compatibility, convenient connection
Including RS232, switching signals, etc., it is convenient to connect with other online devices.
Standardized And Customized Services
We pursue excellence in intelligent manufacturing through digital transformation and automation upgrades. By actively expanding the application of big data analysis and artificial intelligence technology, we are committed to intelligent manufacturing and providing customers with excellent products and services. Our offerings include a range of high-performance standardized products that have undergone rigorous testing to meet diverse industry needs. We also offer custom solutions, where our dedicated design team creates tailored solutions for unique requirements. Through comprehensive services, we create high-quality mechanical products and system solutions with meticulous craftsmanship.
Minimum Order Quantity
1 unit.
After-sales Warranty Time
One year after installation.
