Overview
| Video Off-site Inspection | Can provide | Warranty Period | 1 year |
| Voltage | 220V, 380V/ customizable | Weight | 20 KG |
| Inspection Report | Can provide | Main Material | 304 stainless steel |
| Core Components | Imported booster pumps, solenoid valves, and RO reverse osmosis membranes | Function | Water purification |
| Country of Origin | Anhui, China | Type | On the ground |
| Product Name | Research laboratory ultrapure water system | Control | Electrical automatic control |
| Product Color | Customizable | Minimum Order Quantity | 1 unit |
| Operation | Automatically execute | Provide After-sales Service | Drawings, videos, installation and operation and maintenance manuals, on-site services |
| Brand | SECCO | Core Component Warranty | 1 year |
Product Specifications
| Content | Parameter |
| Maximum Reverse Osmosis Water Production Capacity (L/min) | 1.5-2 |
| Equipment Size (L×B×H) (mm) | 430×590×610/ customizable |
| Weight of Equipment (kg) | 20 |
| Water Inlet Requirements | Municipal water supply |
| Water Production Capacity (25°C) (L/H) | 10,15,20,30,45,60 |
| Work Stress Monitoring | 0-1 MPa,0-150 PSI |
| Installation Method | Countertop |
| Divalent Ion Resolution | ＞99% (using new RO membranes) |
| Organic Matter Resolution | ＞99% (MW＞200 Dalton) |
| Inorganic Ion Retention Rate | 98%-99% (using new RO membranes) |
| Particle and Bacterial Resolution | ＞99% |
| Soluble Organic Matter Retention Rate | ＞99%(MW＞300 Dalton) |
| TDS value (ppm) | RO water TDS< Inlet water TDS × 4% (Desalination rate > 99%) |

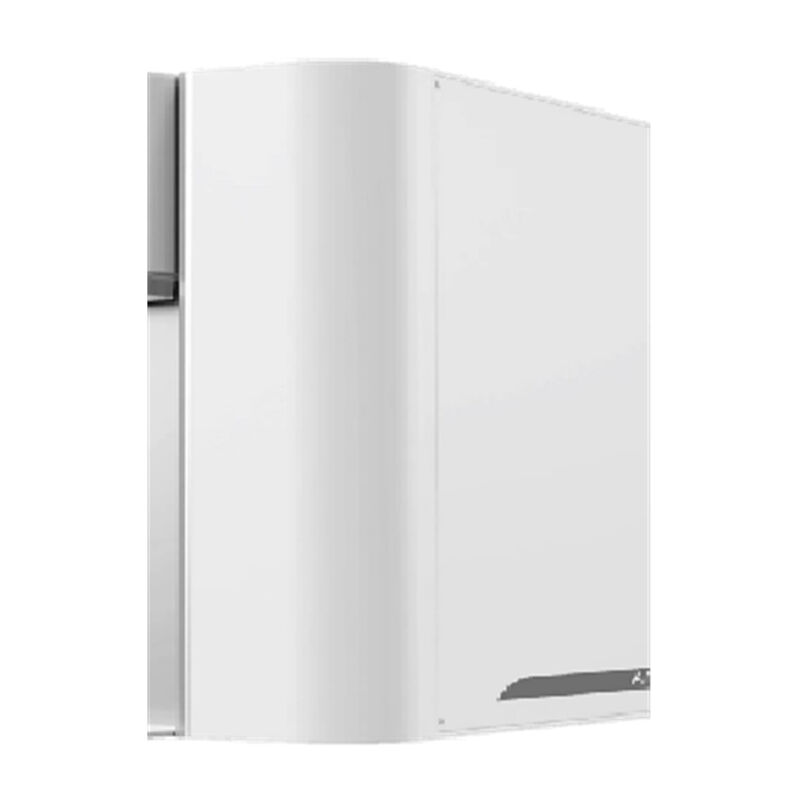

Equipment Appearance Diagram
The research laboratory ultrapure water system employs a three-stage purification process (pretreatment + RO + Polishing mixed-bed), integrated with UV sterilization and intelligent control. It consistently produces 18 MΩ·cm ultrapure water (TOC ≤ 3 ppb, bacteria ≤ 0.01 CFU/mL), featuring a smart touchscreen and remote monitoring capabilities to meet the stringent requirements of scientific research, medical applications, and other high-standard demands.
Product Composition
The whole system is mainly composed of Imported booster pumps, solenoid valves, and RO reverse osmosis membranes.
Technical Principle
Pre-treatment + RO + Polishing mixed bed
Production Cycle
Delivery time:100 days
Support for Customization Options
| Option | Minimum Order | Customization Costs |
| Custom Colors | 1 | - |
| Custom Dimensions | 1 | - |
| Ultrapure Water Production Volume | 1 | - |
| Power Supply Power | 1 | - |
Application Scenarios
Sectors with high-standard water requirements, such as research laboratories and healthcare facilities.
Application Cases

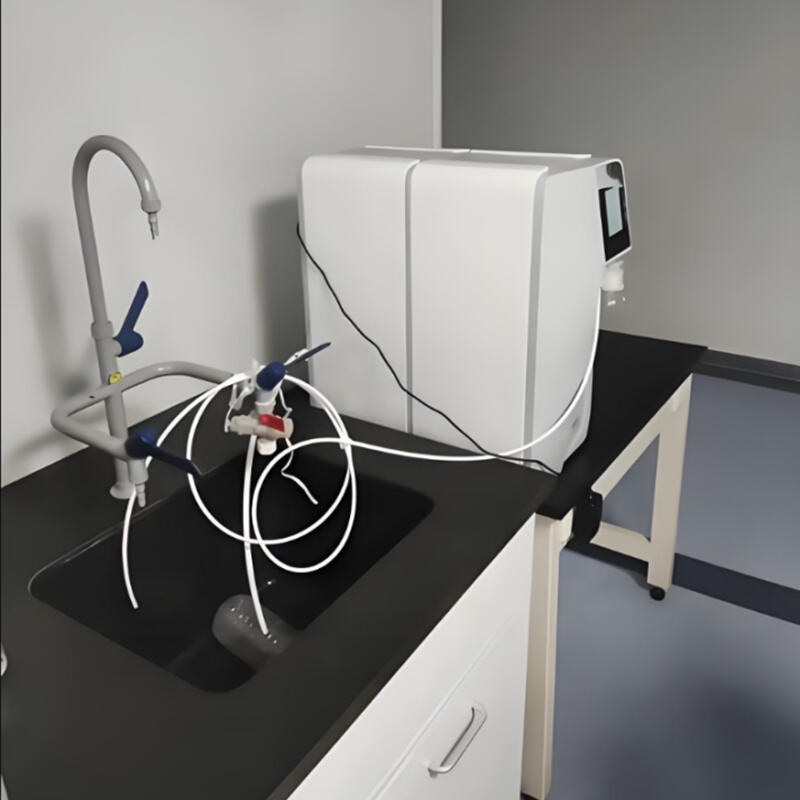

A university laboratory has introduced this ultrapure water system, which consistently produces water meeting the 18 MΩ·cm ultrapure water standard. This meets the demands of high-end experiments such as ICP-MS analysis and cell culture. Equipped with intelligent monitoring and remote management capabilities, it reduces annual operating costs by approximately 40%. Currently serving over 200 research projects, the system has significantly enhanced experimental efficiency and data reliability, providing laboratories with a stable and efficient ultrapure water supply.
Product Advantages
a. Features manual water dispensing and high-precision quantitative dispensing (10-999,999 mL), making water retrieval more user-friendly.
b. Accurately tracks each dispensing session, displaying real-time flow rate, cumulative volume, water quality, temperature, and tank capacity during operation.
c. Fully automatic RO membrane anti-scaling flush function with configurable interval and duration settings, plus manual forced flush capability to extend membrane lifespan.
d. Real-time monitoring of three water streams: source water, RO reverse osmosis water, and DI deionized water/up ultrapure water.
e. Automatic alarm and display for abnormal conditions in any monitored stream (parameters configurable).
f. High-precision conductivity and resistivity monitor ensures accurate water quality tracking.
g. PP cotton filter, AC pre-treatment column, RO reverse osmosis column, DI ion exchange column, UP purification column, UV lamp, and TF consumables feature configurable lifespan settings. Displays accumulated usage time and volume, with automatic replacement reminders upon expiration.
Minimum Order Quantity
1 unit.
After-Sales Warranty Time
One year after installation.
